Messages

16

Motorolla Hardware Section / L6 dead, no bootloader revive done

« on: September 25, 2008, 08:28:39 AM »

Problem-L6 no-power, no-bootloader even if you press *,#, power key. no response also with power suppy. Costumer says phone was accidentally dropped.
Action taken- First tried detecting unit with smart moto via tp. "No phone found" phone cannot be detected. So I decided to remove metal shielding and reflow  flash chip indicated in posted pics. After reflow tried detecting unit again via tp in smart moto. Phone was detected. I assembled the phone again and powered it on. Viola!!! Phone revived.





b.r.

17

SpiderMan-Box / Q380 start-up password and anti-theft password disable done

« on: September 25, 2008, 08:27:09 AM »

Problem: Q380 star-up password
Action taken: Read usercode with Spiderman Box. Need to enter readed codes one by one until correct code is accepted.

start-up password



Once correct code is accepted you can now go to settings/ security and disable or enter new codes. For "anti-theft" password. Code is also among readed usercode just enter again one by one until correct code is accepted.

anti-theft password







b.r.

Q380 start-up password and anti-theft password disable done

18

Setool Section / K530i unlock done via create rest file w/ guide

« on: September 25, 2008, 08:25:43 AM »

Phone: K530i Smart Locked

- identify first using Dcu-60 usb cable
  to know if rest file and bypass package is available for
  patch/unlock



- in identify logs rest file is not present so what do you do now?
- you can go to support and download rest file for your phone or you create one for your phone.
- what you need Main fw ver of your phone. ( must be same CID ver. and Firmware ver. ) If you don't same Fw. download it from support. Follow my screen shots.

Restoration file creation



Identify again after operation is finished



-Now restoration file is present
-You can now proceed to patch/unlock the phone
- In settings tab put check signmode, enable alternative security bypass, enable preloader security bypass
- Now go back to sony ericsson tab
- Tick unlock/repair tab
- Press and hold "c" key and connect Dcu-60 usb cable

- Now SETool will inject executor sa fone...

- Once SETOOL tells you this:>>> DISCONNECT PHONE NOW INSERT SIM CARD, FULLY TURN PHONE ON AND ATTACH AGAIN BE SURE THAT YOU SET PHONE IN "PHONE MODE" IF ASKED, INSTALL PHONE DRIVERS... Press STOP...

- We will not be installing drivers for Modem for CSCA to save time.

- Here get ready with your Test SIM card or the SIM card phone is locked to where you can put the fone in PHONE-MODE (where you can access the Menus)

- Remove Fone>Insert SIM>Turn unit ON>Go to Menu>File Manager>Games> Run EXECUTOR (Menu structure may differ on some SE Models, Just search for EXECUTOR file and RUN it.)

Now your fone is DEAD....

But not for long.....

- go to setool settings tab and put check only USE PRELOADER SECURITY BYPASS.



- go back to sony ericsson tab and tick unlock/repair tab and connect dead phone while pressing "c" key to usb cable.

wait for unlocking operation to finish.........

Now phone is Alive and patch/unlocked.





b.r.

19

Samsung / Unlock T229 T-mobile ok 100% via codes

« on: September 16, 2008, 06:13:30 AM »

Insert non T-mobile sim card

You see invalid card
Enter this code
*7465625*638*00000000*00000000#
Restart phone
#7465625*638*00000000#
enter this to check lock status
*#7465625#

Restart, phone UNLOCK OK.



b.r.

20

Setool Section / P990i Old Security flash and unlock done

« on: September 10, 2008, 05:34:12 AM »

P990i simlocked to Smart old security. First tired direct unlock but rest file is not available even in support site. So I flashed unit with supported fw then unlock.Use dcu-60 usb cable for flashing and unlocking. And also make sure battery is sufficiently charged.

9/9/2008 1:11:20 PM v0.914039/UNI
9/9/2008 1:11:20 PM CARD SERIAL: kungpaoski
9/9/2008 1:11:20 PM Loaded 51 flash descriptors
9/9/2008 1:12:25 PM PLEASE IGNORE "PRESS POWER ON" MESSAGES !!!!
9/9/2008 1:12:36 PM detected MASTER on COM83, SLAVE on COM84
9/9/2008 1:12:36 PM PDA EROM VERSION: CXC162060 R1A10
9/9/2008 1:12:36 PM Open COM port OK
9/9/2008 1:12:38 PM ChipID:7100,EMP protocol:0301
9/9/2008 1:12:38 PM
9/9/2008 1:12:38 PM PHONE IS RED RETAIL PRODUCT
9/9/2008 1:12:38 PM FLASH CID detected:49
9/9/2008 1:12:38 PM Speed:921600
9/9/2008 1:12:39 PM Flash ID check:2010
9/9/2008 1:12:39 PM Flash props sent ok
9/9/2008 1:12:39 PM OTP LOCKED:1 CID:49 PAF:1 IMEI:35959300237856 CERT:RED
9/9/2008 1:12:39 PM FLASH CID:49 COLOR:RED
9/9/2008 1:12:40 PM phone model: P990i
9/9/2008 1:12:40 PM part number: FAD-3022011-BV
9/9/2008 1:12:40 PM Phone part version: CXC162037 R5A006
9/9/2008 1:12:40 PM organizer part version: CXC162058 R4F01
9/9/2008 1:12:40 PM CDA part version: CXC162036 R3A04
9/9/2008 1:12:40 PM CCPU part version: CXC162087 R2A01
9/9/2008 1:12:40 PM USERCODE:0000
9/9/2008 1:12:40 PM
9/9/2008 1:12:40 PM Elapsed: 15 secs.
9/9/2008 1:13:37 PM PLEASE IGNORE "PRESS POWER ON" MESSAGES !!!!
9/9/2008 1:13:46 PM detected MASTER on COM83, SLAVE on COM84
9/9/2008 1:13:47 PM Open COM port OK
9/9/2008 1:13:48 PM ChipID:7100,EMP protocol:0301
9/9/2008 1:13:49 PM
9/9/2008 1:13:49 PM PHONE IS RED RETAIL PRODUCT
9/9/2008 1:13:49 PM FLASH CID detected:49
9/9/2008 1:13:49 PM Speed:921600
9/9/2008 1:13:49 PM OTP LOCKED:1 CID:49 PAF:1 IMEI:35959300237856 CERT:RED
9/9/2008 1:13:51 PM LDR:050926 1419 NPA1CXC1250163_SEMC_FLASHLOADER R2A
9/9/2008 1:14:02 PM Open COM port OK
9/9/2008 1:14:04 PM ChipID:7100,EMP protocol:0301
9/9/2008 1:14:04 PM
9/9/2008 1:14:04 PM PHONE IS RED RETAIL PRODUCT
9/9/2008 1:14:04 PM FLASH CID detected:49
9/9/2008 1:14:04 PM Speed:921600
9/9/2008 1:14:05 PM Trying to launch embedded bootloader...
9/9/2008 1:14:05 PM INT LDR:050810 0923 DB2000_CRIPPLED_PRELOADER_SETOOL2_R2B
9/9/2008 1:14:07 PM Flash ID check:2010
9/9/2008 1:14:07 PM Flash props sent ok
9/9/2008 1:14:10 PM FOUND: R5A006      prgCXC162037_CCPU_HE_LL_NI
9/9/2008 1:14:10 PM Restore from:R5A006      prgCXC162037_CCPU_HE_LL_NI
9/9/2008 1:14:10 PM can't open file "D:\setool flashes\v0.914037\rest\R5A006      prgCXC162037_CCPU_HE_LL_NI"
9/9/2008 1:14:12 PM Setting up GDFS...
9/9/2008 1:14:12 PM Unlock FAILED
9/9/2008 1:14:12 PM Elapsed: 35 secs.

flashing:



unlocking:

After flashing w/ supported fw tick unlock tab





b.r.

21

Smart-Clip / C261 repair eeprom then unlock done

« on: September 08, 2008, 08:33:37 AM »

Problem: Hang on motorola logo due to bad unlocking
Action taken: Repair eeprom and unlocked the unit

eeprom repair:



unlock:

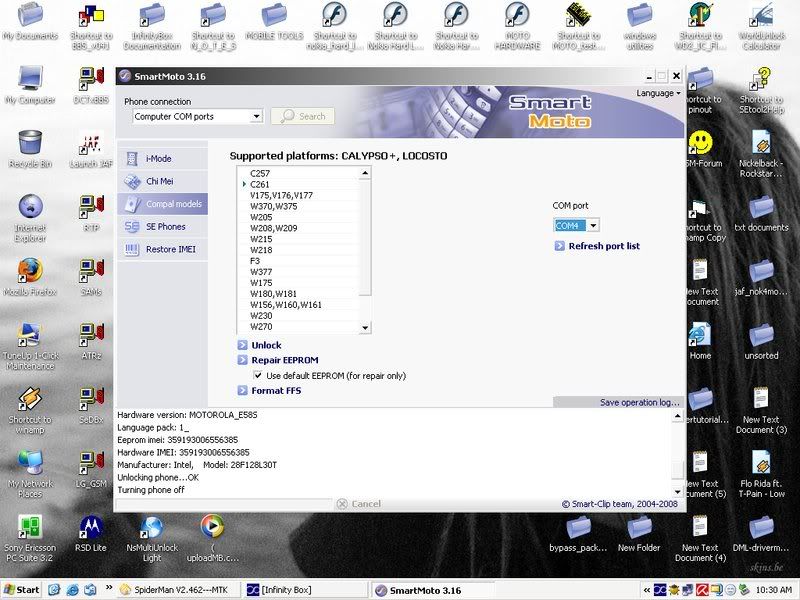

SmartMoto 3.16
S-Card: Smart-Clip dongle, v 2.10, assigned Smart-Clip: Europe, initializing... OK
Waiting for the phone to power on...OK
Sending boot...OK
Software version: 0.1.66
Hardware version: MOTOROLA_E58S
Language pack: 1_
Hardware IMEI: 359193006556385
Manufacturer: Intel,    Model: 28F128L30T
Performing EEPROM repair...OK
Turning phone off
Waiting for the phone to power on...OK
Sending boot...OK
Software version: 0.1.66
Hardware version: MOTOROLA_E58S
Language pack: 1_
Eeprom imei: 359193006556385
Hardware IMEI: 359193006556385
Manufacturer: Intel,    Model: 28F128L30T
Unlocking phone...OK
Turning phone off



b.r.

22

Smart-Clip / SCout flasher v1.12

« on: August 30, 2008, 05:33:34 PM »

We are pleased to introduce a new version of SCout flasher v1.12, SCout dongle v0.14 and S-Card 2.10.

With this release we present:

   1. Added support for the following models: C155, C156, C157, V170, V171, V172, V173, W175g.
   2. Reorganized flashing procedure for the following ODM LBI phone models: W156, W160, W161, W175, W175g, W180, W181, W230, W270.

http://www.scoutdongle.com/content/view/19/1



 Tuesday, 26 August 2008
New *.sfl files added to SmartMoto and SCout sections of http://www.boot-loader.com

Added new firmware for Compal models:

    * W175g
          o 6.2.57
    * C155
          o 0.0.37
          o 0.3.35_SAsia
          o 0.3.43_NAsia
          o 0.3.43_Srilanka
          o 0.3.44_MotoSP
          o 0.3.44_Retail
          o 0.3.46
          o 0.3.46_T-Mobile
          o 0.3.47
          o 0.4.58
          o 0.4.69_Poland Retail
          o 0.4.84_Bouygues
          o 0.4.84_EMEA
          o 0.4.84_Standard
          o 0.4.84_T-Mobile
          o 0.5.01_MOL
          o flex
          o lng
    * C156
          o 0.3.53
          o flex
          o lng
    * C157
          o 0.3.50_NAsia
          o 0.3.54
          o 0.4.58
          o 1.4.88_Retail
          o 1.5.19_Hutch
          o flex
          o lng
    * V170
          o 4.4.68_TCC
          o 4.4.68_TWN
          o flex
          o lng
    * V171
          o 4.4.16
          o 4.4.16_MotoSP
          o 4.4.16_TWN
          o 4.4.31_Cz
          o 4.4.35_SAsia
          o 4.4.48_NZ
          o 4.4.58_Pl_Ch_Hunga
          o 4.4.58_Retail
          o 4.4.58_Vodafone
          o 4.4.69
          o 4.4.69_Retail
          o 4.4.69_R_and_D
          o 4.4.69_Swisscom
          o 4.4.85
          o 4.4.91_Viet_India
          o 4.5.38_Balkans Retail
          o 4.5.38_Greece Retail
          o 5.5.06_Asia
          o flex
          o lng
    * V172
          o 5.7.40_Venezuela Digitel
          o flex
          o lng
    * V173
          o flex
          o lng

 Thursday, 28 August 2008

Reorganized flash file names.

From now on, the flash files for the following models: L7, L7i_L7e, L9_L72, V3 Blue, V3i_07 and Z3 that contain SP lock, are having the word Locked in the end of the file name.

b.r.

23

QUALCOMM Models (3G) / L170 3G Globe locked unlocked using fastmultiloader and Ns Pro

« on: August 29, 2008, 09:48:40 AM »

L170 3G Globe locked unlocked using fastmultiloader and Ns Pro


I've been trying to unlock this unit via flashing patch unlock file with Ns Pro but always getting error in flashing Rs1,Rs2 and file sytem.




Finally found solution for writing patch unlock files.
Thanks to Master Prolevelz for time spent helping me unlock this unit.

-First change boot using fastmultiloader
-L170 boot files here: http://www.4shared.com/file/60873507/43fc2d29/L170_BOOTFILES.html
-Fast multiloader here: http://www.4shared.com/file/60874989/f8504bfb/FastMultiLoader_V326.html

-open fast multiloader
-tick 6275/6280
-tick boot change
-tick BOOT tab and load your boot files
-use usb cable
-put unit in bootmode press 9+power connect usb cable
-wait till finish installing phone drivers
-tick port search to detect your unit
-once port is detected tick download tab



-after boot files are downloaded
-disconnect cable
 -load L170 Ns Pro patch files for unlock
-connect phone to cable press * phone will go to download mode
-tick port search once unit is detected tick download tab
-wait for downloading to finish
-after successfull download disconnect cable then wait for phone to finish formatting



-open Ns Pro
-select L170 phone model
-power on unit connect to cable
-tick unlock tab





b.r.

24

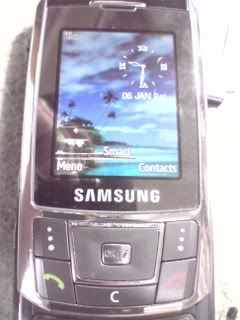

HWK / D900i "no service" write full E2P repair done

« on: August 27, 2008, 05:38:50 AM »

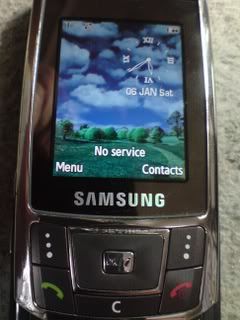

D900i "no service" write full E2P repair done

I have been trying to write eeprom file using NsPro with this unit but always error in writing. So I decided to check eeprom file for this unit is availble in Ufs Hwk support Site. Luckily it was. So downloaded the file and write it to unit. Problem Fixed:D

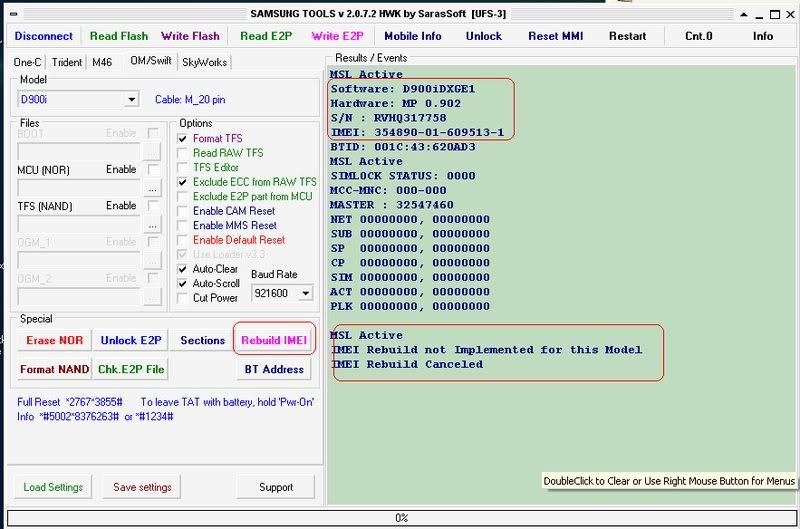

Tried rebuilding original imei but not yet supported with Ufs hwk Samsung. But unit has signal which is all that matters.

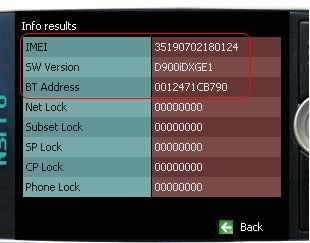

Read info using NsPro

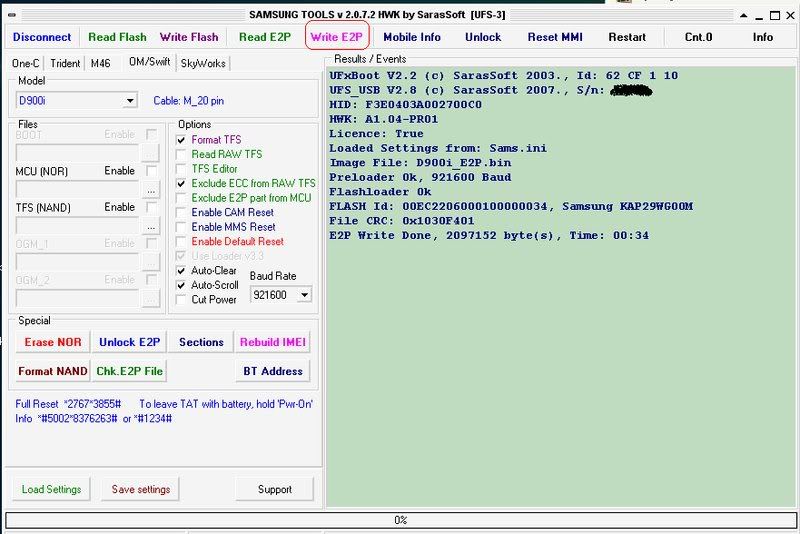

E2P flashing Ufs hwk:

-I used D800 rj45 cable from NsPro
-Tick write E2P tab ,load D900i E2P file and wait for flashing finishes



Read info after flashing E2P file unit has new imei:



Before and after:



Here's D900i Full E2P file I used:

http://www.mediafire.com/?byhmolqmdne

B.r.

25

Infinity-Box / MModule v2.30 uploaded in support area

« on: August 26, 2008, 06:11:36 PM »

26 Aug 2008: Spice-S705, BenQ-C30 added, Konka-C676, Konka-C623, Zonda-1095 in test
MModule v2.30 uploaded in support area:

.Spice-S705 model supported
.BenQ-C30 model supported
.Konka-C676, Konka-C623, Zonda-1095, Bird-V750 models in test

As ordinary (during more than 3 last years), free update for Infinity-Box users.

Flash files for new supported models uploaded in support area.

b.r.

26

DreamBox / Dbss 3.7 Update

« on: August 22, 2008, 09:14:11 PM »

Dbss 3.7 Update
Dear users,
We are pleased to announce a release of new versions of DBSS v3.7.

In this update:

Added support for the listed below Sony Ericsson phone models (PNX platform CID51, 52, 53):

* W series: W350, W380
* Z series: Z310, Z555
The following options are added.
o Multiflash FOTA/Main Firmware/File System using DCU-60 cable.
o Read/write GDFS.
o Phone customization.
o Change CDA.
o Read phone info.
o Reset User Lock.
o Reset Call Timer.
o Read phone internal diagnostic log.
o Upgrade CID (from 51, 52 to 52, 53).


More features to come.
Best regards,
GSMDream team

DreamBox - Get more with it.



b.r.

27

New Member's Lounge / Hello to all

« on: August 22, 2008, 05:32:10 PM »

welcome here Bro......


b.r.

28

New Member's Lounge / hello

« on: August 22, 2008, 05:31:32 PM »

Welcome here bro.......

share and learn new things here.........


b.r.

29

J.A.F - Just Another Flasher / i need semc flash files

« on: August 21, 2008, 06:42:47 AM »

Jaf support has stopped uploading flash files for jaf semc free tool.


b.r.

30

FuriouS TeaM Products / LG CE110 at&t unlock done

« on: August 21, 2008, 06:39:35 AM »

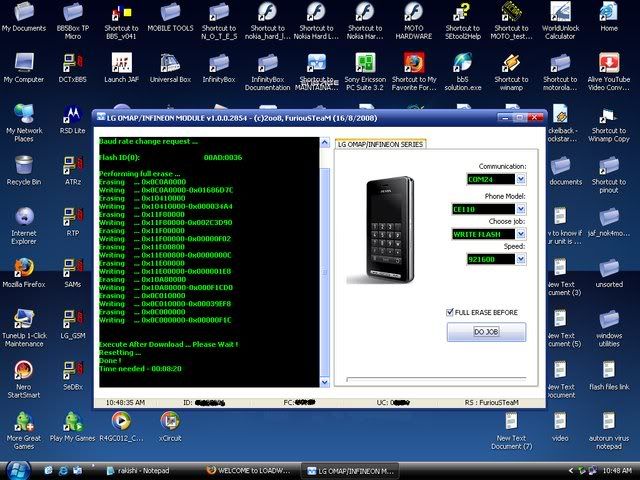

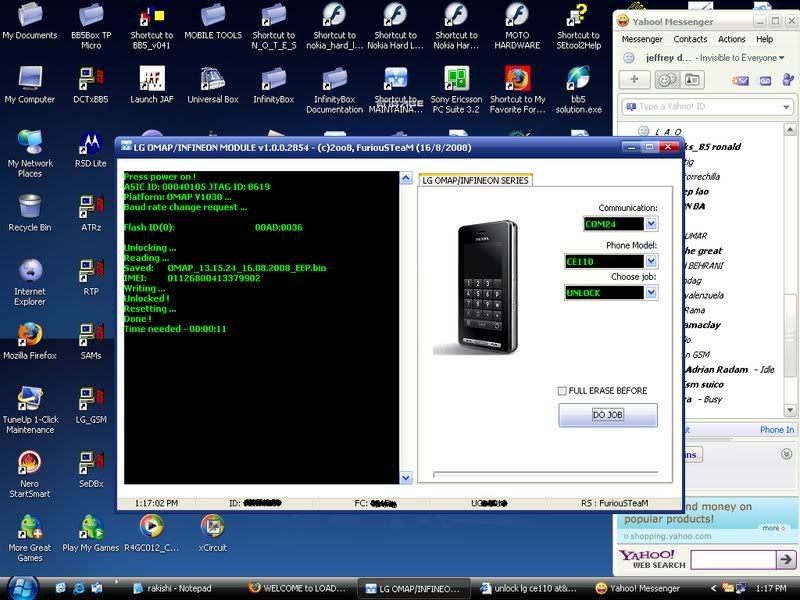

LG CE110 at&t unlock done

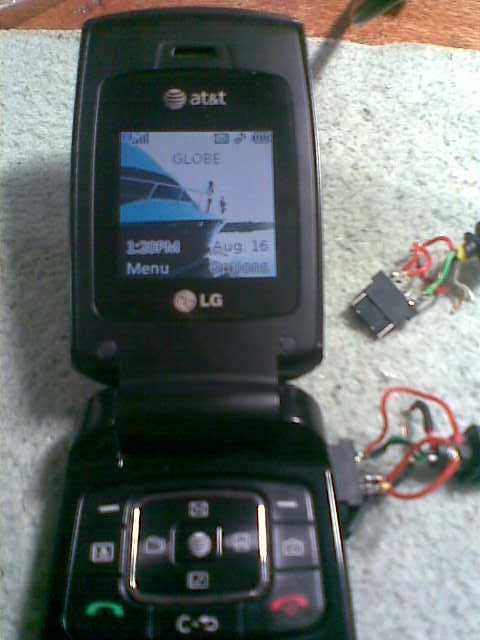

For Ce110 you need to modify KG 800 FG cable to the following :

original pinouts:


****************MG160,KG270,KG370,KG320,KG800 pinout******************************

keyboard up

18.............1

7 - RX (data to phone)
6 - TX (data from phone)
1,4,14,18 - GND



CE110

18.............1

17 - RX (data to phone)
16 - TX (data from phone)
1,4,14,18 - GND

Flash unit with either one of this flash files from support:
CE110P64FL-01-V10g-310-170 JUL 31 2007.zip
CE110P64FL-01-V10i-310-170 JAN 30 2008.zip

After flashing unlock unit

screenshots:

flashing:



unlock:





b.r.
