Topics - kungpaoski

Pages: 1 2 [3] 4 5 ... 8

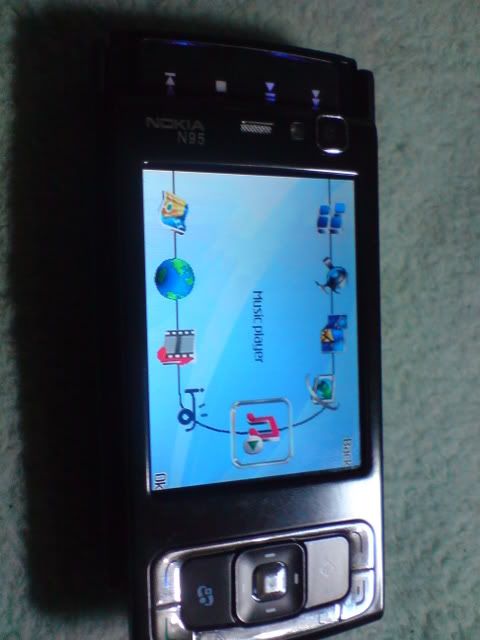

Infinity-Box / N95 dualslide "auto-off with sim" new pinouts formatt fs done

« on: July 25, 2008, 05:41:16 AM »

infinity logs:

Code: [Select]


[COLOR=Lime]Format complete[/COLOR]

WARNING ! Settings will be cleared, user data erased, Imei set to default value !
Make flash backup before this procedure !

Do you want to continue ?
COM1 [Serial0] selected
Device: Autodetect 6205-6227 NOR
Checking data, wait...
advanced flash detection enabled
eeprom backup enabled, it may takes several minutes !
Action: reset
Boot...
Press and HOLD Power button now !
19200 fixed
Connecting, wait...
Initializing[6226:8A02:8A01]...
CPU: MT6226
high speed boot disabled
chip: 0031:318C:3DD8
high speed disabled
boot step size: 0002
Release Power button now !
Boot Done
Initialize...
detecting chip #00 in region #00...
flash: EC257E25082501:2CEA0000000000
flash: Samsung AMD/Fujitsu std [D 0008x002000 00FEx010000 0008x002000] 16Mb
detecting chip #01 in region #00...
flash: EC257E25082501:2CEA0000000000
flash: Samsung AMD/Fujitsu std [D 0008x002000 00FEx010000 0008x002000] 16Mb
number of flash chip/regions detected: 02/01
Initialize Done
Set baud...
115200
Set baud Done
Initialize bootcode...
Initialize bootcode Done
Check firmware integrity...
device parameters autodetection in progress..
detecting chip #00 in region #00...
flash: EC257E25082501:2CEA0000000000
flash: Samsung AMD/Fujitsu std [D 0008x002000 00FEx010000 0008x002000] 16Mb
detecting chip #01 in region #00...
flash: EC257E25082501:2CEA0000000000
flash: Samsung AMD/Fujitsu std [D 0008x002000 00FEx010000 0008x002000] 16Mb
it's time to stop: 2C0000EA18F09FE518F09FE518F09FE518F09FE518F09FE5
number of flash chip/regions detected: 01/01
total flash region size: 01000000
detect device identification#1...
detection phase #1...
detect device identification#1 finished
identification#1 structure: 2nd [enhanced] generation
security area#1 is Ok
security area#1 backup saved: C:\Program Files\InfinityBox\ChineseMiracle\backup_security\id.AB23C7C8.[N95_PCB01_GPRS_MT6226_S01.MAUI_06B_W07_04_MP_V32.BIN_D6ADFD7F].rpl
identification#1 detection finished
device-id: AB23C7C8
identification#1 protocol ver: 04
ver. sw1: N95_PCB01_GPRS_MT6226_S01.MAUI_06B_W07_04_MP_V32.BIN
ver. sw2: MAUI.06B.W07.04.MP.V32, 80025229
ffs offset/size: 00E00000/00200000
detect device identification#2...
detection phase #1...
.
warning: optional information not found,
if phone works well just ignore this warning
detect device identification#2 finished
detecting eeprom/ffs area in 1 chip(s)...
standard eeprom/ffs offset detected: 00E00000
flash: EC257E25082501:2CEA0000000000
checking area[00000000]: 00000000-00FFFFFF...
eeprom/ffs found near: 00E00000
detecting eeprom/ffs size...
eeprom/ffs size: 00200000
ffs chip: 00
eeprom/ffs area: 00000000:00E00000-00FFFFFF
Check firmware integrity Done
Check firmware content...
Check firmware content Done
Backup required data...
reading [eeprom[N95_PCB01_GPRS_MT6226_S01.MAUI_06B_W07_04_MP_V32.BIN]]...
file saved: C:\Program Files\InfinityBox\ChineseMiracle\eeprom[N95_PCB01_GPRS_MT6226_S01.MAUI_06B_W07_04_MP_V32.BIN]_20080724-162230.B0E.bin
flash: EC257E25082501:2CEA0000000000
Backup required data Done
Patch required data...
Patch required data Done
Special operation...
Special operation Done
Write...
Write Done
Finalization...
formatting...
flash: EC257E25082501:2CEA0000000000
Finalization Done
file saved: C:\Program Files\InfinityBox\ChineseMiracle\system_log_AB23C7C8_N95_PCB01_GPRS_MT6226_S01.MAUI_06B_W07_04_MP_V32.BIN_D6ADFD7F_20080724-162249.B0X.bin
Finished, time used: 249 sec
Remove/Install battery now !

File system has been modified !
It is need to press and HOLD phone &quot;Power&quot; button
during long time (up to 1 min) to make phone Powered-On !

[COLOR=Lime]Phone info:[/COLOR]

Action: read information
Model: Autodetect 6205-6227 NOR
Checking data, wait...
Phone should be Switched ON !
Connecting, wait...
Phone detected, wait...
Hardware version: MT6226, E02
Hardware version: N95_06B_HW
Software version: MAUI.06B.W07.04.MP.V
Software date: 2005.04.12
Barcode: MT012345678901234567
imei: [COLOR=Lime]135790246811220[/COLOR]
Finished, time used: 5 sec
Power off phone now !

[COLOR=Lime]Rebuild ime[/COLOR]

Action: imei
Model: Autodetect 6205-6227 NOR
Checking data, wait...
Phone should be Switched ON !
Connecting, wait...
Phone detected, wait...
Hardware version: MT6226, E02
Hardware version: N95_06B_HW
Software version: MAUI.06B.W07.04.MP.V
Software date: 2005.04.12
Barcode: MT012345678901234567
imei: 135790246811220
imei write method: mode-1
new imei: 357927000015498
imei verified Ok
Finished, time used: 5 sec
Power off phone now !

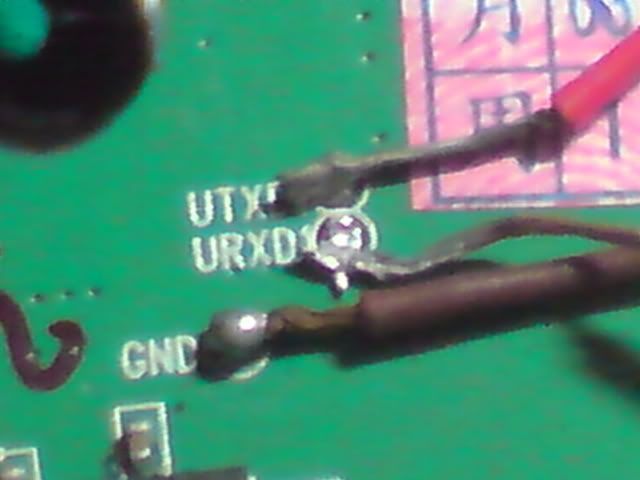

Pin out:

b.r.

NSPRO / .: How to properly download flash files from Ns Pro support site for newbies :.

« on: July 20, 2008, 02:04:47 PM »

.: .: How to properly download flash files from Ns Pro support site for newbies :. :.

- 1st need to download ALZip Zip Utility tool
- Open Ns Pro
- Click support tab

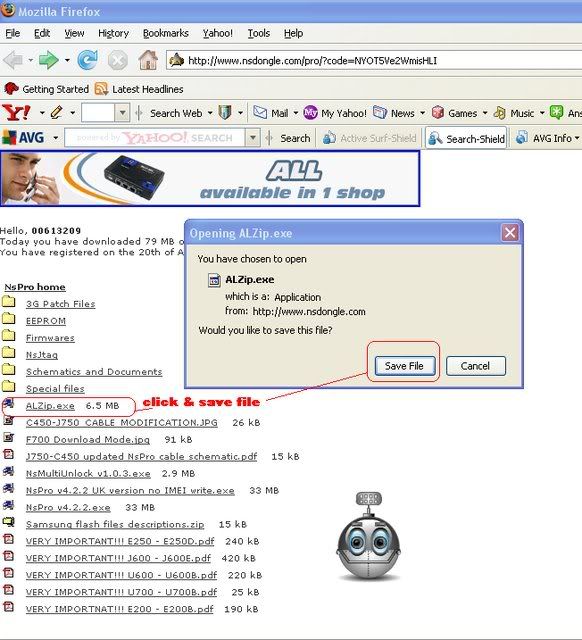

- Click,save and download ALZip.exe. And install

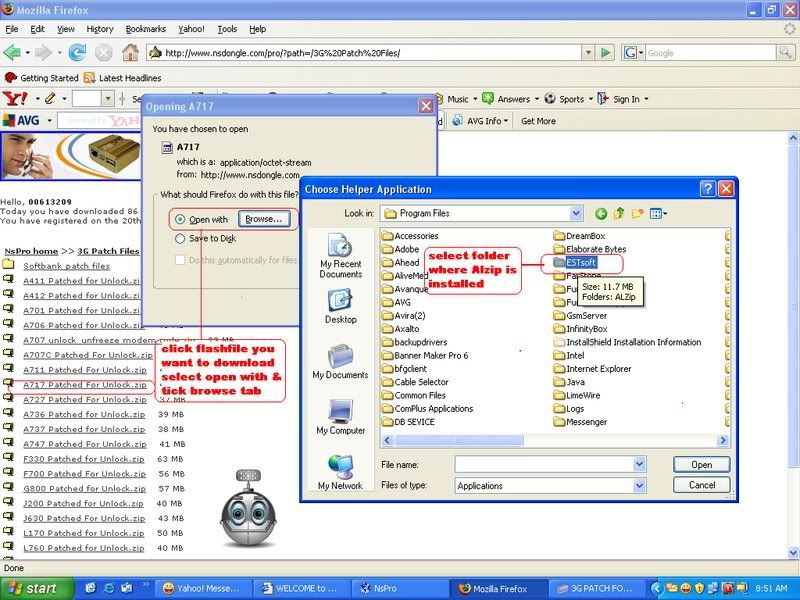

- After you have installed ALZip. You're ready to download flash files

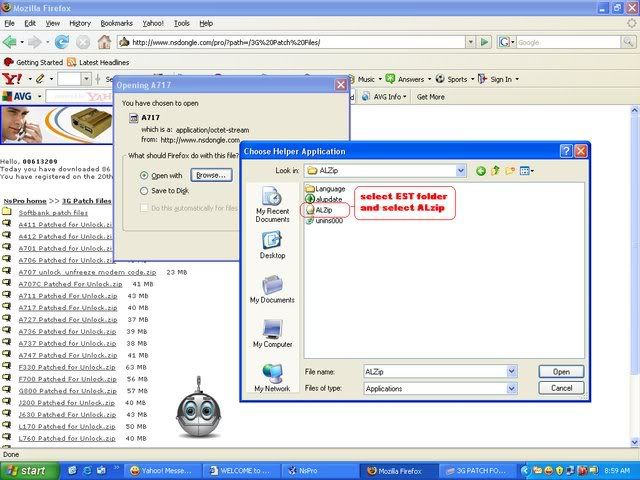

- Select ALZip tick open tab

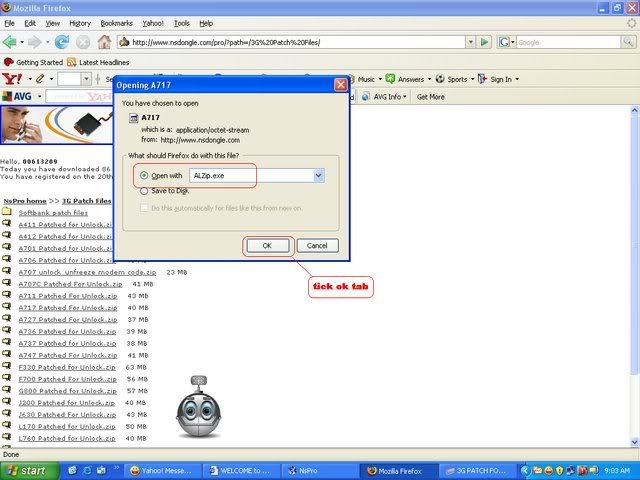

- tick Ok tab

FuriouS TeaM Products / .: Furious Gold online tutorials & Cables List :.

« on: July 15, 2008, 07:58:13 AM »

http://www.furious-gold.com/help.php

PACKING LIST

CABLES LIST :
Ref : FuriousGold001 - E-series : OT-E100/157/158/159/160/161/252/256/257/259/265/801/105 - C-series : C552/C62/C64
Ref : FuriousGold002 - BENQ S660,S670,S680,O2x2
Ref : FuriousGold003 - BENQ M300,M315,S700,AP75,E61
- O2 O2x1i,O2x1b,O2x3,O2x2i
Ref : FuriousGold004
- VITEL - O2x7
Ref : FuriousGold005
- ONDA N3000 - Phone House GR1000
Ref : FuriousGold006
- DRAGON 1916/1928
- ARIMA 2851
Ref : FuriousGold007
- NEC E338,228,313,616
- Sanyo 801SA,750,750i
- Sharp GX30
Ref : FuriousGold008
- PANASONIC A100, A101, A102
- PHILIPS 568
Ref : FuriousGold009
- NEC 343i
Ref : FuriousGold010
- TOSHIBA TS10,TS608
Ref : FuriousGold011
- NEC N500, N200 - LG TYPE A (7050)(24 PINS connector)
- NEWGEN C610,C620,C800,E1000,E1100,T1000
- Modelabs ELITE Phone
- Airness99
Ref : FuriousGold012
LG TYPE B (7100)(18 PINS CONNECTOR)
Ref : FuriousGold013
LG TYPE C (B1200)
Ref : FuriousGold014
LG TYPE D (KG800)
Ref : FuriousGold015
RJ45 = LG 3G TYPE E USB = LG 3G QUALCOM
Ref : FuriousGold016
- KONKA 926 - THOMSON TN320
Ref : FuriousGold017
- MAXON 7970
- MAXON O2X1
Ref : FuriousGold018
- VKMOBILE 207,530,560,570
Ref : FuriousGold019
- Panasonic Vs2, Vs3, Vs6, Vs7, Mx6, Mx7, Sa6, Sa7
Ref : FuriousGold020 - Siemens C62
Ref : FuriousGold021
- SHARP 802,902,903,703,904

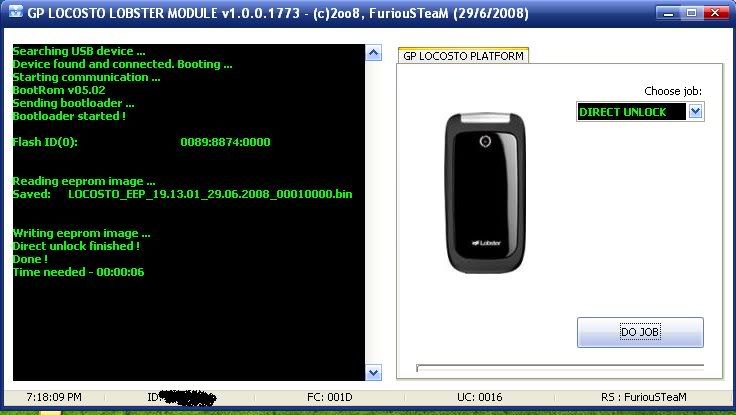

Ref : FuriousGold022 - LOBSTER 544
Ref : FuriousGold023 - LOBSTER 485
Ref : FuriousGold024 - DBTEL J6/EMBLAZE
Ref : FuriousGold025 - VIRGIN MICROSNAPER
Ref : FuriousGold026 - PANTECH ALL MODELS
Ref : FuriousGold027 - BLACKBERRY TYPE B
Ref : FuriousGold028 –USB- NEC 3G 228,313,616
Ref : FuriousGold029 –USB- - NEC N412i,N512i,E949,E938,L1
Ref : FuriousGold030 –USB- - NEC N8,411i,540,N500i,341i,400i, N series - SHARP GX15
Ref : FuriousGold031 –USB-
- Benq S80, S81, S82 - O2X4 - Siemens SFG75 - BLACKBERRY TYPE A
Ref : FuriousGold032 USB
- VK MOBILE VK200
Ref : FuriousGold033 USB
- VK MOBILE VK4000
Ref : FuriousGold034
- USB POWER CABLE
Ref : FuriousGold035
- RS 232 COM EXTENSION CABLE
Ref : FuriousGold036
- 18 PINS connector
Ref : FuriousGold037
- 24 PINS connector
Ref : FuriousGold038

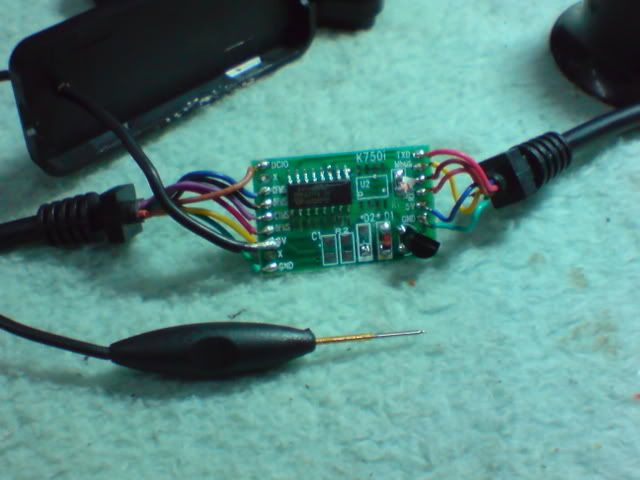

- Sony-Ericsson K750/J100
Ref : FuriousGold039
- Amoi Test Point Cable
Ref : FuriousGold040
- NEC E121, E122
Ref : FuriousGold041
- TOSHIBA TS2i
Ref : FuriousGold042 –USB-
LG TYPE D - LG KG99 KU311 KU730 etc
Ref : FuriousGold043 - Huawei ETS 668
Ref : FuriousGold044
- DIRECT TEST POINT CABLE
Ref : FuriousGold045
- TREO USB cable
Ref : FuriousGold046
- PHILIPS 530 cable

B.r.

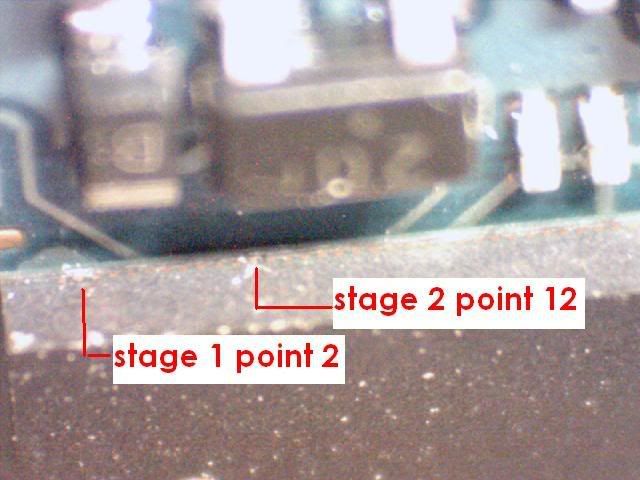

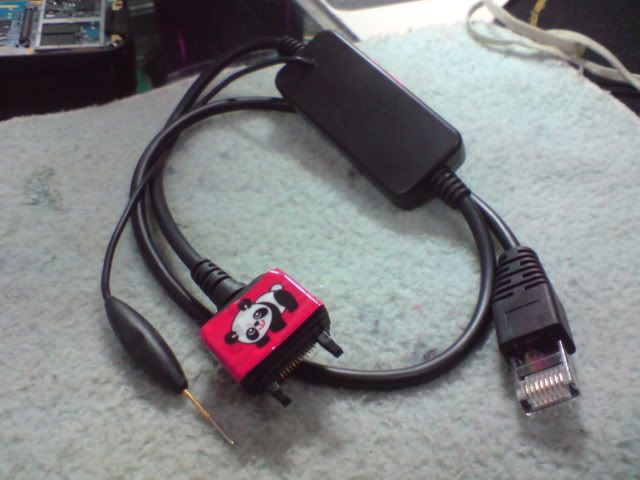

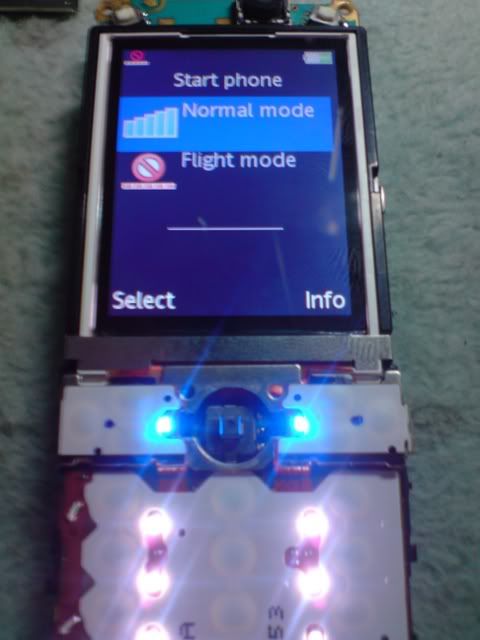

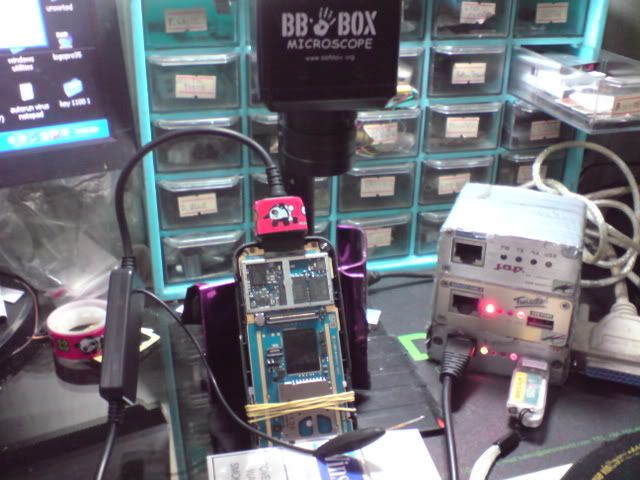

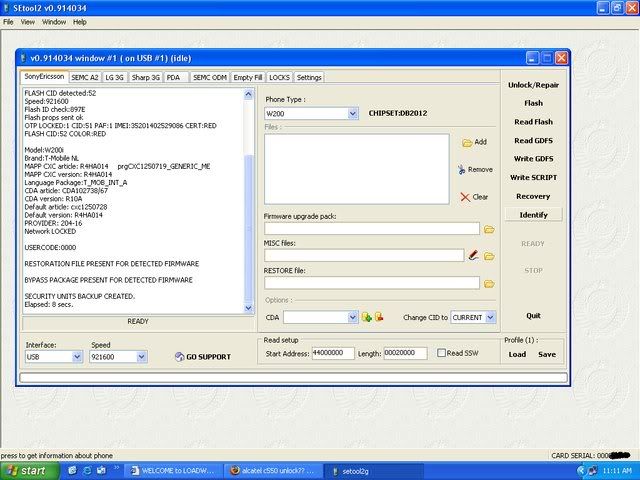

Setool Section / K810 "red blink" repair gdfs done

« on: July 11, 2008, 05:47:58 PM »

Code: [Select]

7/11/2008 12:06:14 PM v0.914037/UNI
7/11/2008 12:06:14 PM CARD SERIAL: kungpaoski
7/11/2008 12:06:14 PM Loaded 51 flash descriptors
7/11/2008 12:06:14 PM Connecting to UFS...
7/11/2008 12:06:14 PM Found 2 FTDI device(s).
7/11/2008 12:06:15 PM UFS kungpaoski READY

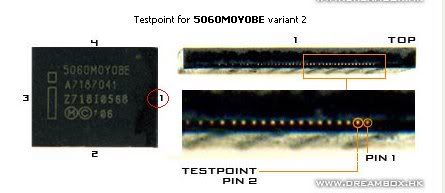

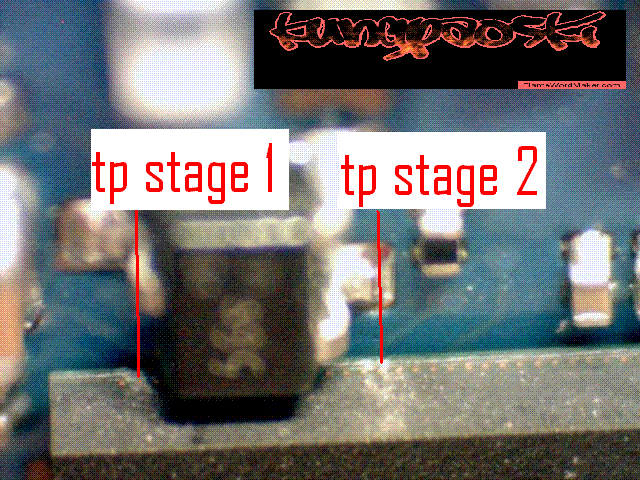

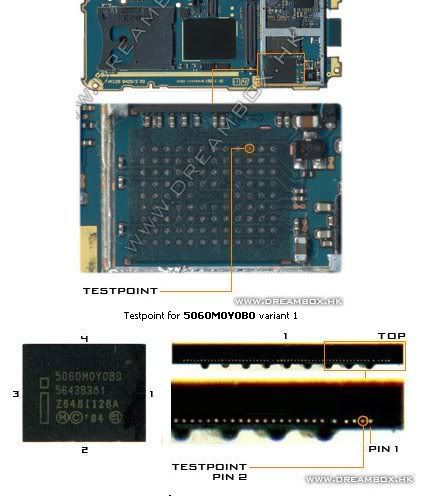

7/11/2008 12:06:18 PM TESTPOINT REPAIR STAGE #1 STARTED
7/11/2008 12:06:19 PM ChipID:9900,EMP protocol:0301
7/11/2008 12:06:19 PM Speed:921600
7/11/2008 12:06:20 PM OTP LOCKED:1 CID:51 PAF:1 IMEI:35799401690563 CERT:N/A
7/11/2008 12:06:20 PM FLASH CID:52 COLOR:RED
7/11/2008 12:06:21 PM LDR:061201 1314 HANCXC1329129_DB2020_FLASHLOADER_R2A005
7/11/2008 12:06:21 PM PREPARING...
7/11/2008 12:06:27 PM ATTACH TP #1 AND PRESS &quot;READY&quot;
7/11/2008 12:06:59 PM RELEASE TP #1 AND PRESS &quot;READY&quot;
7/11/2008 12:07:02 PM TP #1 INCORRECT
7/11/2008 12:07:02 PM Elapsed: 44 secs.
7/11/2008 12:07:04 PM TESTPOINT REPAIR STAGE #1 STARTED
7/11/2008 12:07:06 PM ChipID:9900,EMP protocol:0301
7/11/2008 12:07:06 PM Speed:921600
7/11/2008 12:07:06 PM OTP LOCKED:1 CID:51 PAF:1 IMEI:35799401690563 CERT:N/A
7/11/2008 12:07:06 PM FLASH CID:52 COLOR:RED
7/11/2008 12:07:07 PM LDR:061201 1314 HANCXC1329129_DB2020_FLASHLOADER_R2A005
7/11/2008 12:07:07 PM PREPARING...
7/11/2008 12:07:14 PM ATTACH TP #1 AND PRESS &quot;READY&quot;
7/11/2008 12:07:35 PM RELEASE TP #1 AND PRESS &quot;READY&quot;
7/11/2008 12:07:37 PM TP #1 LOOKS OKAY
7/11/2008 12:07:46 PM DONE

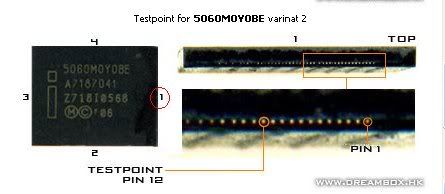

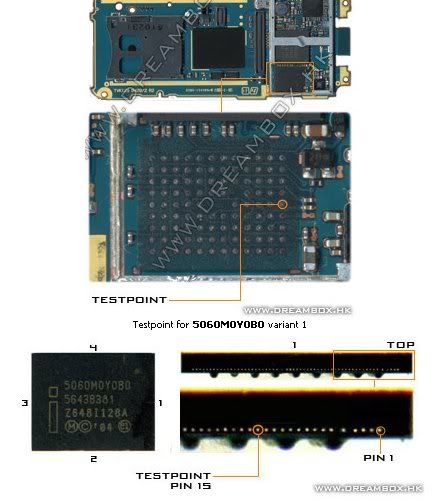

7/11/2008 12:07:46 PM TESTPOINT REPAIR STAGE #2 STARTED
7/11/2008 12:07:48 PM ATTACH TP #2 AND PRESS &quot;READY&quot;
7/11/2008 12:08:09 PM Trying to launch embedded bootloader...
7/11/2008 12:08:09 PM TP #2 LOOKS OKAY
7/11/2008 12:08:09 PM RELEASE TP #2 AND PRESS &quot;READY&quot;
7/11/2008 12:08:14 PM INT LDR:DB2020_PRELOADER_FOR_SETOOL2
7/11/2008 12:08:17 PM WRITING EROM...
7/11/2008 12:08:20 PM DONE
7/11/2008 12:08:21 PM Elapsed: 76 secs.
7/11/2008 12:09:32 PM ChipID:9900,EMP protocol:0301
7/11/2008 12:09:32 PM Speed:921600
7/11/2008 12:09:33 PM OTP LOCKED:1 CID:51 PAF:1 IMEI:35799401690563 CERT:N/A
7/11/2008 12:09:33 PM FLASH CID:49 COLOR:BROWN
7/11/2008 12:09:35 PM LDR:060721 1021 DB2020_SERVICE_LOADER
7/11/2008 12:09:35 PM Flash ID check:897E
7/11/2008 12:09:35 PM Flash props sent ok
7/11/2008 12:09:35 PM writing D:\setool flashes\v0.914037\gdfs_in_ssw_format\db2020\K800_GDFS_SSW.ssw
7/11/2008 12:09:37 PM CURRENT FLASH FILE CID:49
7/11/2008 12:09:37 PM SSW uses complete hash, hash len is:640
7/11/2008 12:09:37 PM Will flash 32 blocks...
7/11/2008 12:10:11 PM SSW loading returns:0
7/11/2008 12:10:11 PM Setting up GDFS...
7/11/2008 12:10:12 PM OTP WRITE NOT EXECUTED.
7/11/2008 12:10:12 PM Writing simlocks...
7/11/2008 12:10:12 PM ALL UNLOCK/LOCK CODES SET TO &quot;71605041&quot;
7/11/2008 12:10:12 PM Signing...
7/11/2008 12:10:12 PM control keys complete.
7/11/2008 12:10:14 PM full sig complete.
7/11/2008 12:10:16 PM Elapsed: 46 secs.
7/11/2008 12:11:05 PM ChipID:9900,EMP protocol:0301
7/11/2008 12:11:05 PM Speed:921600
7/11/2008 12:11:06 PM OTP LOCKED:1 CID:51 PAF:1 IMEI:35799401690563 CERT:N/A
7/11/2008 12:11:06 PM FLASH CID:49 COLOR:BROWN
7/11/2008 12:11:08 PM LDR:060721 1021 DB2020_SERVICE_LOADER
7/11/2008 12:11:08 PM Flash ID check:897E
7/11/2008 12:11:08 PM Flash props sent ok
7/11/2008 12:11:08 PM writing D:\setool flashes\v0.914037\eroms\DB2020EROM_CNV_RED52_BROWN_CID49_DB2020.ssw
7/11/2008 12:11:10 PM CURRENT FLASH FILE CID:49
7/11/2008 12:11:10 PM SSW uses complete hash, hash len is:40
7/11/2008 12:11:10 PM Will flash 2 blocks...
7/11/2008 12:11:12 PM SSW loading returns:0
7/11/2008 12:11:12 PM Setting up GDFS...
7/11/2008 12:11:13 PM OTP WRITE NOT EXECUTED.
7/11/2008 12:11:13 PM Writing simlocks...
7/11/2008 12:11:13 PM ALL UNLOCK/LOCK CODES SET TO &quot;28737854&quot;
7/11/2008 12:11:13 PM Signing...
7/11/2008 12:11:13 PM control keys complete.
7/11/2008 12:11:15 PM full sig complete.
7/11/2008 12:11:17 PM Elapsed: 14 secs.
7/11/2008 12:11:28 PM ChipID:9900,EMP protocol:0301
7/11/2008 12:11:28 PM Speed:921600
7/11/2008 12:11:28 PM Flash ID check:897E
7/11/2008 12:11:28 PM Flash props sent ok
7/11/2008 12:11:28 PM OTP LOCKED:1 CID:51 PAF:1 IMEI:35799401690563 CERT:N/A
7/11/2008 12:11:28 PM FLASH CID:52 COLOR:RED
7/11/2008 12:11:30 PM
7/11/2008 12:11:30 PM Model:K810i
7/11/2008 12:11:30 PM Brand:Generic
7/11/2008 12:11:30 PM MAPP CXC article: R1KC001     prgCXC1250811_GENERIC_SM
7/11/2008 12:11:30 PM MAPP CXC version: R1KC001
7/11/2008 12:11:30 PM Language Package:EUROPE_4
7/11/2008 12:11:30 PM CDA article: CDA111111/DEV
7/11/2008 12:11:30 PM CDA version: R2A
7/11/2008 12:11:30 PM Default article: cxc1250813
7/11/2008 12:11:30 PM Default version: R1KC001
7/11/2008 12:11:30 PM PROVIDER: 000-00
7/11/2008 12:11:30 PM SIMLOCKS NOT DETECTED
7/11/2008 12:11:30 PM
7/11/2008 12:11:30 PM RESTORATION FILE PRESENT FOR DETECTED FIRMWARE
7/11/2008 12:11:30 PM
7/11/2008 12:11:30 PM BYPASS PACKAGE PRESENT FOR DETECTED FIRMWARE
7/11/2008 12:11:30 PM
7/11/2008 12:11:30 PM Elapsed: 4 secs.

flash logs:

7/11/2008 12:31:54 PM v0.914037/UNI
7/11/2008 12:31:54 PM CARD SERIAL: kungpaoski
7/11/2008 12:31:54 PM Loaded 51 flash descriptors
7/11/2008 12:31:54 PM Connecting to UFS...
7/11/2008 12:31:54 PM Found 2 FTDI device(s).
7/11/2008 12:31:55 PM UFS kungpaoski READY
7/11/2008 12:32:01 PM SIGNED MODE (USING SERVER).
7/11/2008 12:32:05 PM ChipID:9900,EMP protocol:0301
7/11/2008 12:32:05 PM Speed:921600
7/11/2008 12:32:06 PM Flash ID check:897E
7/11/2008 12:32:06 PM Flash props sent ok
7/11/2008 12:32:06 PM OTP LOCKED:1 CID:51 PAF:1 IMEI:35799401690563 CERT:N/A
7/11/2008 12:32:06 PM FLASH CID:52 COLOR:RED
7/11/2008 12:32:07 PM
7/11/2008 12:32:07 PM Model:K810i
7/11/2008 12:32:07 PM Brand:Generic
7/11/2008 12:32:07 PM MAPP CXC article: R1KC001     prgCXC1250811_GENERIC_SM
7/11/2008 12:32:07 PM MAPP CXC version: R1KC001
7/11/2008 12:32:07 PM Language Package:EUROPE_4
7/11/2008 12:32:07 PM CDA article: CDA111111/DEV
7/11/2008 12:32:07 PM CDA version: R2A
7/11/2008 12:32:07 PM Default article: cxc1250813
7/11/2008 12:32:07 PM Default version: R1KC001
7/11/2008 12:32:07 PM PROVIDER: 000-00
7/11/2008 12:32:07 PM SIMLOCKS NOT DETECTED
7/11/2008 12:32:07 PM
7/11/2008 12:32:07 PM RESTORATION FILE PRESENT FOR DETECTED FIRMWARE
7/11/2008 12:32:07 PM
7/11/2008 12:32:07 PM BYPASS PACKAGE PRESENT FOR DETECTED FIRMWARE
7/11/2008 12:32:07 PM
7/11/2008 12:32:08 PM Elapsed: 6 secs.
7/11/2008 12:32:24 PM SIGNED MODE (USING SERVER).
7/11/2008 12:32:26 PM ChipID:9900,EMP protocol:0301
7/11/2008 12:32:26 PM Speed:921600
7/11/2008 12:32:27 PM OTP LOCKED:1 CID:51 PAF:1 IMEI:35799401690563 CERT:N/A
7/11/2008 12:32:27 PM FLASH CID:52 COLOR:RED
7/11/2008 12:32:29 PM PATCH:061205 1523 HANCXC9876543210_DB2020_MEM_PATCHER_R2A006 0
7/11/2008 12:32:31 PM LDR:061201 1314 HANCXC1329129_DB2020_FLASHLOADER_R2A005
7/11/2008 12:32:31 PM Flash ID check:897E
7/11/2008 12:32:31 PM Flash props sent ok
7/11/2008 12:32:31 PM writing D:\setool flashes\SE\DB2020 FLASH FILES\k810i\R1KC001 cid 52\R1KC001_1250811_GENERIC_SM.ssw
7/11/2008 12:32:37 PM CURRENT FLASH FILE CID:52
7/11/2008 12:32:37 PM SSW uses complete hash, hash len is:9200
7/11/2008 12:32:38 PM Will flash 460 blocks...
7/11/2008 12:40:47 PM SSW loading returns:0
7/11/2008 12:40:47 PM writing D:\setool flashes\SE\DB2020 FLASH FILES\k810i\R1KC001 cid 52\R1KC001_FS_EUROPE_4_SM_RED_CID52.ssw
7/11/2008 12:40:51 PM CURRENT FLASH FILE CID:52
7/11/2008 12:40:51 PM SSW uses complete hash, hash len is:4500
7/11/2008 12:40:52 PM Will flash 225 blocks...
7/11/2008 12:44:50 PM SSW loading returns:0
7/11/2008 12:44:58 PM LDR:070904 1245 AN2CXC1250562_DB2020_CSLOADER_R3A013
7/11/2008 12:44:58 PM loader startup: executed
7/11/2008 12:45:08 PM loader GDFS startup: executed
7/11/2008 12:45:17 PM loader filesystem startup: executed
7/11/2008 12:45:17 PM loader unlock: executed
7/11/2008 12:45:17 PM writing tpa/preset/custom/C3_PCA_G3v2.cer
7/11/2008 12:45:17 PM writing tpa/preset/custom/CONTENT_DOWNLOAD_HOOK_2.itm
7/11/2008 12:45:17 PM writing tpa/preset/custom/customize.xml
7/11/2008 12:45:17 PM writing tpa/preset/custom/DESKTOP_HOOK_2.itm
7/11/2008 12:45:17 PM writing tpa/preset/custom/Entrust.net Root Certificate.cer
7/11/2008 12:45:17 PM writing tpa/preset/custom/Entrust.net_WTLS_Root_Certificate.wcrt
7/11/2008 12:45:18 PM writing tpa/preset/custom/FM_PICTURES_HOOK_3.itm
7/11/2008 12:45:18 PM writing tpa/preset/custom/FM_SOUNDS_HOOK_3.itm
7/11/2008 12:45:18 PM writing tpa/preset/custom/FM_THEMES_HOOK_3.itm
7/11/2008 12:45:19 PM writing tpa/preset/custom/FM_VIDEOS_HOOK_3.itm
7/11/2008 12:45:19 PM writing tpa/preset/custom/GAMES_HOOK_3.itm
7/11/2008 12:45:19 PM writing tpa/preset/custom/GTE_CyberTrust_Root.cer
7/11/2008 12:45:19 PM writing tpa/preset/custom/GTE_Cybe_Trust_Root_WTLS.wcrt
7/11/2008 12:45:19 PM writing tpa/preset/custom/Root.cer
7/11/2008 12:45:19 PM writing tpa/preset/custom/SEMC_E2E_Root_CA.crt
7/11/2008 12:45:19 PM writing tpa/preset/custom/SETT_RINGTONE_HOOK_3.itm
7/11/2008 12:45:20 PM writing tpa/preset/custom/ThawtePremium.der
7/11/2008 12:45:20 PM writing tpa/preset/custom/ThawteServerCA.cer
7/11/2008 12:45:20 PM writing tpa/preset/custom/Utiroot.cer
7/11/2008 12:45:20 PM writing tpa/preset/custom/VeriSignClass3Root.cer
7/11/2008 12:45:20 PM writing tpa/preset/custom/Verisign_Class_3_CA_WTLS.wcrt
7/11/2008 12:45:20 PM Phone detached
7/11/2008 12:45:22 PM Elapsed: 777 secs.

test points

stage 1:

stage 2:

Ngaun lang na post wala ako internet connection kanina

b.r.

Setool Section / W850i tp done using tp points on side of flashchip same with DBSS

« on: July 09, 2008, 11:06:52 AM »

Code: [Select]

7/9/2008 8:56:00 AM v0.914037/UNI
7/9/2008 8:56:00 AM CARD SERIAL: kungpaoski
7/9/2008 8:56:00 AM Loaded 51 flash descriptors
7/9/2008 8:56:00 AM Connecting to UFS...
7/9/2008 8:56:00 AM Found 2 FTDI device(s).
7/9/2008 8:56:01 AM UFS kungpaoski READY
7/9/2008 8:57:59 AM TESTPOINT REPAIR STAGE #1 STARTED
7/9/2008 8:58:01 AM ChipID:9900,EMP protocol:0301
7/9/2008 8:58:01 AM Speed:921600
7/9/2008 8:58:01 AM OTP LOCKED:1 CID:49 PAF:1 IMEI:35240101812325 CERT:N/A
7/9/2008 8:58:01 AM FLASH CID:52 COLOR:RED
7/9/2008 8:58:02 AM LDR:061201 1314 HANCXC1329129_DB2020_FLASHLOADER_R2A005
7/9/2008 8:58:02 AM PREPARING...
7/9/2008 8:58:09 AM ATTACH TP #1 AND PRESS &quot;READY&quot;
7/9/2008 8:59:17 AM RELEASE TP #1 AND PRESS &quot;READY&quot;
7/9/2008 8:59:20 AM TP #1 INCORRECT
7/9/2008 8:59:21 AM Elapsed: 81 secs.
7/9/2008 8:59:28 AM TESTPOINT REPAIR STAGE #1 STARTED
7/9/2008 8:59:31 AM ChipID:9900,EMP protocol:0301
7/9/2008 8:59:31 AM Speed:921600
7/9/2008 8:59:32 AM OTP LOCKED:1 CID:49 PAF:1 IMEI:35240101812325 CERT:N/A
7/9/2008 8:59:32 AM FLASH CID:52 COLOR:RED
7/9/2008 8:59:33 AM LDR:061201 1314 HANCXC1329129_DB2020_FLASHLOADER_R2A005
7/9/2008 8:59:33 AM PREPARING...
7/9/2008 8:59:40 AM ATTACH TP #1 AND PRESS &quot;READY&quot;
7/9/2008 9:00:35 AM RELEASE TP #1 AND PRESS &quot;READY&quot;
7/9/2008 9:00:38 AM TP #1 LOOKS OKAY
7/9/2008 9:00:47 AM DONE
7/9/2008 9:00:47 AM TESTPOINT REPAIR STAGE #2 STARTED
7/9/2008 9:00:49 AM ATTACH TP #2 AND PRESS &quot;READY&quot;
7/9/2008 9:01:18 AM Trying to launch embedded bootloader...
7/9/2008 9:01:18 AM TP #2 LOOKS OKAY
7/9/2008 9:01:18 AM RELEASE TP #2 AND PRESS &quot;READY&quot;
7/9/2008 9:01:24 AM INT LDR:DB2020_PRELOADER_FOR_SETOOL2
7/9/2008 9:01:27 AM WRITING EROM...
7/9/2008 9:01:30 AM DONE
7/9/2008 9:01:31 AM Elapsed: 122 secs.
7/9/2008 9:02:19 AM ChipID:9900,EMP protocol:0301
7/9/2008 9:02:19 AM Speed:921600
7/9/2008 9:02:20 AM OTP LOCKED:1 CID:49 PAF:1 IMEI:35240101812325 CERT:N/A
7/9/2008 9:02:20 AM FLASH CID:49 COLOR:BROWN
7/9/2008 9:02:22 AM LDR:060721 1021 DB2020_SERVICE_LOADER
7/9/2008 9:02:22 AM Flash ID check:897E
7/9/2008 9:02:22 AM Flash props sent ok
7/9/2008 9:02:22 AM writing D:\setool flashes\v0.914037\gdfs_in_ssw_format\db2020\w850_gdfs_ssw.ssw
7/9/2008 9:02:23 AM CURRENT FLASH FILE CID:49
7/9/2008 9:02:23 AM SSW uses complete hash, hash len is:640
7/9/2008 9:02:24 AM Will flash 32 blocks...
7/9/2008 9:03:00 AM SSW loading returns:0
7/9/2008 9:03:00 AM Setting up GDFS...
7/9/2008 9:03:01 AM OTP WRITE NOT EXECUTED.
7/9/2008 9:03:01 AM Writing simlocks...
7/9/2008 9:03:01 AM ALL UNLOCK/LOCK CODES SET TO &quot;64137804&quot;
7/9/2008 9:03:01 AM Signing...
7/9/2008 9:03:01 AM control keys complete.
7/9/2008 9:03:03 AM full sig complete.
7/9/2008 9:03:05 AM Elapsed: 47 secs.
7/9/2008 9:03:35 AM ChipID:9900,EMP protocol:0301
7/9/2008 9:03:35 AM Speed:921600
7/9/2008 9:03:36 AM OTP LOCKED:1 CID:49 PAF:1 IMEI:35240101812325 CERT:N/A
7/9/2008 9:03:36 AM FLASH CID:49 COLOR:BROWN
7/9/2008 9:03:38 AM LDR:060721 1021 DB2020_SERVICE_LOADER
7/9/2008 9:03:38 AM Flash ID check:897E
7/9/2008 9:03:38 AM Flash props sent ok
7/9/2008 9:03:38 AM writing D:\setool flashes\v0.914037\eroms\DB2020EROM_CNV_RED52_BROWN_CID49_DB2020.ssw
7/9/2008 9:03:40 AM CURRENT FLASH FILE CID:49
7/9/2008 9:03:40 AM SSW uses complete hash, hash len is:40
7/9/2008 9:03:40 AM Will flash 2 blocks...
7/9/2008 9:03:42 AM SSW loading returns:0
7/9/2008 9:03:42 AM Setting up GDFS...
7/9/2008 9:03:43 AM OTP WRITE NOT EXECUTED.
7/9/2008 9:03:43 AM Writing simlocks...
7/9/2008 9:03:43 AM ALL UNLOCK/LOCK CODES SET TO &quot;82325531&quot;
7/9/2008 9:03:43 AM Signing...
7/9/2008 9:03:43 AM control keys complete.
7/9/2008 9:03:45 AM full sig complete.
7/9/2008 9:03:47 AM Elapsed: 13 secs.
7/9/2008 9:05:17 AM SIGNED MODE (USING SERVER).
7/9/2008 9:05:17 AM ALTERNATIVE SECURITY BYPASS ENABLED.
7/9/2008 9:05:18 AM ChipID:9900,EMP protocol:0301
7/9/2008 9:05:18 AM Speed:921600
7/9/2008 9:05:19 AM Flash ID check:897E
7/9/2008 9:05:19 AM Flash props sent ok
7/9/2008 9:05:19 AM OTP LOCKED:1 CID:49 PAF:1 IMEI:35240101812325 CERT:N/A
7/9/2008 9:05:19 AM FLASH CID:52 COLOR:RED
7/9/2008 9:05:21 AM
7/9/2008 9:05:21 AM Model:W850i
7/9/2008 9:05:21 AM Brand:Generic
7/9/2008 9:05:21 AM MAPP CXC article: R1ED001     prgCXC1250200_GENERIC_CY
7/9/2008 9:05:21 AM MAPP CXC version: R1ED001
7/9/2008 9:05:21 AM Language Package:EUROPE_4
7/9/2008 9:05:21 AM CDA article: CDA102568/13
7/9/2008 9:05:21 AM CDA version: R2A
7/9/2008 9:05:21 AM Default article: cxc1250489
7/9/2008 9:05:21 AM Default version: R1ED001
7/9/2008 9:05:21 AM PROVIDER: 000-00
7/9/2008 9:05:21 AM SIMLOCKS NOT DETECTED
7/9/2008 9:05:21 AM
7/9/2008 9:05:21 AM RESTORATION FILE PRESENT FOR DETECTED FIRMWARE
7/9/2008 9:05:21 AM
7/9/2008 9:05:21 AM BYPASS PACKAGE PRESENT FOR DETECTED FIRMWARE
7/9/2008 9:05:21 AM
7/9/2008 9:05:21 AM Elapsed: 4 secs.

stage 1 tp:

stage 2 tp:

my tp cable from old k750i ufs hwk cable

just soldered tp wire

tp points depend on what flash chip variant unit has to check this go to setool folder/dreambox_tp_info folder/then just click w850_tp_info firefox html.

b.r.

Motorolla Hardware Section / L7 won't power-up/won't display bootloader just white screen repair done

« on: July 03, 2008, 02:30:13 PM »

Recieved this unit yesterday when powered-up just keypad lights then power-off. Pressed *,# power to display bootloader ver. but just white screen only. First tried flashing with rsdlite and scout flasher flashing completed but still same problem. Tried to prepare phone via tp in smart moto but always error boot ver. So I did repair pds instead and full flash unit with smart moto via tp procedure still same problem. Imei patch and rebuild ime still same problem. Posted problem at smart clip section of Gsm Hosting : http://www.gsmhosting.com/vbb/showthread.php?t=559149 thanks to Orange Dominica for the solution. It was hardware problem reflow Ati graphics chip and controllers besside the chip. Now unit is in working condition.

Reflow this Ati graphics chip :

b.r.

FuriouS TeaM Products / Lobster 320 virgin mobile unlockdone

« on: June 29, 2008, 05:45:14 PM »

cable needed mini-usb cable same as for motorola.
>> UPDATE DONGLE TO MODULE PACK 3 FIRST.

» CONNECT POWERED OFF PHONE TO MINI-USB CABLE AND CONNECT TO PC USB PORT..
» if is first time you connect pc will ask for LOCOSTO DRIVERS. THESE DRIVERS CAN BE FOUND IN MODULE ARCHIVE
» AFTER INSTALING THOSE PRESS CANCEL NEXT ITEM WINDOWS ASK FOR DRIVERS (YOU JUST NEED TO INSTALL LOCOSTO DRIVERS)
» if PC ASK FOR MOTOROLA DRIVERS WHEN INSTALLED USE MOTOROLA DRIVERS UNINSTALKLER FROM MODULE ARCHIVE
>> AFTER YOU HAVE INSTALLED LOCOSTO DRIVERS DISCONNECT PHONE FROM CABLE AND INSERT AGAIN THEN PRESS "DO JOBS" TAB.

For LOCOSTO LOBSTER MODULE you can download from support locosto drivers and motorola uninstaller is also included.

B.R.

Infinity-Box / 5310 express music new pinout formatt success

« on: June 25, 2008, 12:35:23 PM »

Problem hang -unit and does not accept globe sim card.

Formatt fs:

rebuild imei:

new pin out:

b.r.

Infinity-Box / N95 dual slide restart problem repair done

« on: June 14, 2008, 11:12:24 AM »

Formatt file system

COM1 [Serial0] selected
Action: reset settings
Model: Autodetect 6205-6227 NOR
Checking data, wait...
Phone should be Switched OFF !
Press and HOLD Power button now !
19200 autodetect
Initializing[6226:8A02:8A01]...
CPU: MT6226
high speed boot disabled
chip: 0031:9B0E:5CC2
Connecting, wait...
Release Power button now !
Phone detected, wait...
Hardware: MT6226,E02
Date: 2005.04.12
Version: 1.0
Version: MAUI.06B.W07.04.MP.V32
Version: N95_06B_HW
detecting structure #2...
0 done
44 byte(s) read
imei: 35792700721082
connection Ok
building list...
done
items to clear: 162
warning: wrong packet cs
161 of 162 items cleared
building list...
done
1 items remains
Finished, time used: 38 sec
Remove/Install battery now !

Rebuild Imei

Action: imei
Model: Autodetect 6205-6227 NOR
Checking data, wait...
Phone should be Switched ON !
Connecting, wait...
Phone detected, wait...
Hardware version: MT6226, E02
Hardware version: N95_06B_HW
Software version: MAUI.06B.W07.04.MP.V
Software date: 2005.04.12
Barcode: MT012345678901234567
imei: 135790246811220
imei write method: mode-1
new imei: 357927007210829
imei verified Ok
Finished, time used: 5 sec
Power off phone now !

PINOUT:

B.R.

FuriouS TeaM Products / KG270 unlock done

« on: June 13, 2008, 08:50:55 AM »

Use cable no. 14 of furious gold cables kg800 rj45.

b.r.

DreamBox / K310i cid 50 Sun sim-locked unlock done

« on: June 03, 2008, 10:56:40 AM »

logs:

--- Security Bypass------------------------------------------------------------
User selected phone K310 using Test Point boot mode
Stage 1 started
1) Turn OFF the phone.
2) Connect the phone to DreamBox cable.
Boot Responce = 5A
Processor ID = 8040030101010101 (DB2012 R3A)
Warning : Detected platform is different from selected
EROM Color = 4 : RED
EROM CID = 50
NOR Flash ID = 897E
OTP Status = LOCKED
OTP IMEI = 357275-01-516817-9
OTP CID = 50
EROM Color = 4 : RED
EROM CID = 50
Hint : Now the probe might be disconnected
Processing ...
Stage 1 completed succesfully
Stage 2 start
Hint : Now the probe might be disconnected
Processing...
Entering Security Bypass mode ...
1) Turn OFF the phone.
2) Connect the phone to DreamBox cable.
Boot Responce = 5A
Processor ID = 8040030101010101 (DB2012 R3A)
Warning : Detected platform is different from selected
EROM Color = 4 : RED
EROM CID = 50
Baseband Chip ID = 8040
Phone ID = 22809B7315102D7E
Finalizing ...
Stage 2 completed succesfully
Done.

--- Unlock and Repair----------------------------------------------------------
User selected phone K310 using Security Bypass boot mode
1) Turn OFF the phone.
2) Connect the phone to DreamBox cable.
Boot Responce = 5A
Processor ID = 8040030101010101 (DB2012 R3A)
Warning : Detected platform is different from selected
EROM Color = 4 : RED
EROM CID = 50
Baseband Chip ID = 8040
Phone ID = 22809B7315102D7E
Reading GDFS...
Testing security ...
GDFS 0013 Hash OK
GDFS 0006 Hash OK
GDFS 000E Hash OK
GDFS 001C Hash OK
Unlocking ...
Testing security ...
GDFS 0013 Hash OK
GDFS 0006 Hash OK
GDFS 000E Hash OK
GDFS 001C Hash OK
Generating GDFS...
Writing GDFS...
Done.

b.r.

Setool Section / How to service db2010/db2020/pnx5230 cid49/cid50/cid51/cid52/cid53 using new setool2

« on: June 02, 2008, 06:04:37 AM »

q:
How to service db2010/db2020/pnx5230 cid49/cid50/cid51/cid52/cid53 using new setool2 (>=v0.914029) alternative bypass method ?
what problems i can meet and how to resolved them ?
what precautions should i follow ?

a:

terms:
phone should work fine.
red blink, white blink, etc phones are NOT supported.

you can only use alternative bypass if your phone has supported firmware (you have BOTH rest file and bypass package)
if yours firmware not supported, either flash supported firmware (only main part in enough) or post request on forum.

BEFORE using new alternative bypass method you SHOULD turn phone on and install CSCA(MODEM) drivers.

i STRONGLY recommending to browse that FAQ and READ article about com-ports growth - there is EXTREMLY helpful file,which
prevents discovering of same phone models as new devices.

if you are capable user, you can edit .inf files of CSCA(MODEM) drivers - we only need to install
Sony Ericsson Device XXX bus driver and Sony Ericsson Device xxx USB WMC Modem - all other devices is not needed.
that will help you to save comport numbers.

important! if your phone had unsupported firmware and you flashed main part (all parts) of supported - you MUST power on phone, so phone will update new firmware info.

because of way new alternative bypass method works, you need
TEST SIM card (mcc/mnc 00101) or OPERATOR SIM card. (you must be able browse phone menu,etc)

supported following models:

db201x cid50/cid51 - k320,k310,k510,w300,etc
db2012 cid52 - normal CID52 phones (w200,w300), abnormal CID52 phones (k310,k510,w810,z550)
db2012 cid53 - not supported at the moment
db2020 cid49/cid51/cid52/cid53 phones
pnx5230 cid49/cid51/cid52/cid53 phones

supported operations:
unlock via patch, all additional things that setool2 can provide.

YOU AGAIN NEED REST FILES !!!! FOR ALL MODELS, WHICH ARE SUPPORTED FOR ALTBYPASS !!!
GET THEM FROM SUPPORT SITE OR DO IT YOURSELF

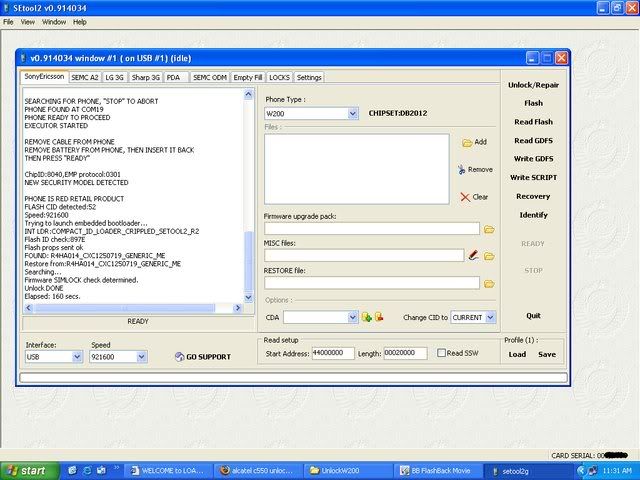

Procedure of new alternative security bypass :

1. select correct phone model
2. go to settings tab,
3. check BOTH "signed mode (using server)", "enable alternative security bypass", that is required
Code:
if your phone is one next models
db2010 cid50/cid51
db2020 cid49/cid51
pnx5230 cid49/cid51
in order to enable NEW (STANDALONE) alternative security bypass,
you MUST check ALSO "enable preloader security bypass".
otherwise server-based security bypass will be used.
4. optionally, check "unlock after flash", "patch otp<>gdfs check in firmware"+"allow to change IMEI when unlocking" (read precautions)
5. optionally, check "complete phone after flash" (i recommend use custpacks)
6. go back to semc tab
7. if you need, add main+fsimage+custpack (script)
8. press desired operation
9. when asked, disconnect phone, insert TEST SIM, POWER ON PHONE FULLY and connect again.
Code:
when i say "POWER ON FULLY" - i mean state of phone,
when it shows main screen with operator name ("no network" with test sim)
10. HOLD "C" (or "2" for w880/simular) BUTTON ALL THE TIME UNTIL PHONE REBOOTS.
11. try to power on phone. phone must NOT power on. it is OKAY.
Code:
If phone power on, go to phone menu->games,
run "executor" application, go to step 11.
12. Disconnect phone, remove battery, insert battery, press "READY", then connect phone while holding corresponding button ('C' or '2' for w880). In 99% cases phone will reboot and connects automatically.
13. turn phone on and check it. delete "executor" from games to save user from regrets of running it.

Code:
after unlock in phone will be application called "executor"
(menu->games->executor)
it is leftover from unlock procedure, you should delete it ... or....
if you run it - it will install preloader in phone and then you able to do
any setool2 function without all that long steps...
(just check ONLY "use preloader security bypass)
phone will appear as "dead" for user in preloader mode
approximate time for unlock by patch using new alternative bypass method is 160-180 seconds on one phone.

easy alternative way of new altbypass method,which NOT require installing of phone drivers,but requre some manual work
couresy of rajSE

at step 9, disconnect phone and power on using test sim/operator sim - DO NOT CONNECT TO PC
navigate to games, and launch executor, phone will "die" (enter preloader mode)
now go to settings, check ONLY"use preloader security bypass"
repeat procedure again, and the phone will be back alive - ensure correct restore file present or make flash+unlock combo

precautions:
please take care that there is NO (at least, i can't get) cid52 firmwares for following db2010 phones: k310,k510,w810,z530,z550

luckily, k310,k510 can be flashed with w200 firmware, so we can always return them to original state.

but it is NOT related to w810,z530,z550 phones.
cause there is no firmwares, we can't recover them in case of error.

because of that, one mistake with that phones - and you get deadweight.
you have been warned.

under mistake i mean:
- terminated flash or anything,which prevents phone from starting up
- changed IMEI of phone, which prevents phone from using new alternative bypass method.

will repeat again:

DO NOT WRITE FOREIGN IMEI IF YOU NOT HAVE BACKUP IN DB2010 CID50/51/52/53 , DB2020 CID49/51/52/53, PNX5230 CID49/CID51/CID52/CID53 PHONE

THINK 10 TIMES BEFORE CHANGE IMEI IN W810/Z530/Z550 CID 52 PHONES
DO NOT EVEN THINK TO MESS UP FIRMWARE IN W810/Z530/Z550 CID52 PHONES

possible problems:

in case of terminated flash/etc you can always return phone to life by flashing any original firmwares into them -
and then it ready for execution again

short info of firmwares we have and have not:

db2012 k310 (via w200),k510 (via w200) ,w200,w300 - CID52 firmwares available.
db201x abnormal CID52 phones Z530,Z550,W810 - NO CID52 firmwares.
db2020 - supported CID52/CID53 firmwares available
pnx5230 - supported CID52/CID53 firmwares available

on "step 12" phone not connecting, but simple turning on (or embedded loader not responding in 15 seconds)

due delicate bypass process such thing is possible, but that happens VERY-VERY rare.
nothing weird happens in that case - you have 4 choices what do :

1. terminate process (press stop) and retry from beginning.
2. as phone powered on now, go to menu->games and run program called "executor". phone should "turn off",sometimes with white screen,sometimes not. Continue procedure then (step 12)
3. if you run "executor",but pressed stop - go to settings, check ONLY "enable preloader security bypass" - now you can do any operation with phone, like unlock/etc.
4. reflash phone in "signed mode" and start from step 1. (idiotic, isn't it ? )

ps.
as i already wrote in "steps" - allow phone to FULLY power on to minimize risk of such behaviour.

on step 10 setool2 stucks in loop with message "PHONE NOT READY YET", but phone is turned on okay

well, better ask semc programmers why that happens... anyway - to solve that -
just press "STOP" ONCE - setool2 will continue procedure.

on step 10 i got message "CAN'T START EXECUTOR,RETRYING..."

it is okay to have that message if phone not in "normal mode" or starting up. just switch phone to normal mode and wait.

on step 10 i got message "There is NO EXECUTOR in phone !"

perhaps, there is not space for virus, perhaps other problems inside phone fs.
just flash phone using "signed mode" and repeat desired procedure in "alternative bypass" mode

b.r.
