Siemens SL65 phone code problem repair done
-read info using format bootcore access mode (1st tried via normal acces mode cannot read phone info)
-now you can read info via normal access mode
-Tried format file system A:(FFS,FFS_01) DBSS service tab but still phone code problem
-So tried to unlock all locks in DBSS Security Tab. That did it!!!!!!!
operation logs:
-- Reading Info---------------------------------------------------------------
User selected phone SL65 using Normal boot mode
Power On the phone ..
Warning : Aborted by user.
--- Reading Info---------------------------------------------------------------
User selected phone SL65 using Normal boot mode
Power On the phone ... OK
Warning : please, use another boot method.
Error : Failed.
--- Reading Info---------------------------------------------------------------
User selected phone SL65 using Auto boot mode
Warning : Power from box is not intended to use in this mode.
It is recommended to use original battery.
Use power from box only in Testpoint mode.
Power On the phone ... OK
Power On the phone ... OK
SIEMENS SL65
Software version: 43
IMEI: 354220-00-536365-6
Warning : Please, do not forget to remove SIM card!!!
Warning : And open slider!!!
Working
Warning : Aborted by user.
--- Reading Info---------------------------------------------------------------
User selected phone SL65 using Auto boot mode
Power On the phone ... OK
Power On the phone ... OK
SIEMENS SL65
Software version: 43
IMEI: 354220-00-536365-6
Warning : Please, do not forget to remove SIM card!!!
Warning : And open slider!!!
Working |
Error : Failed.
--- Reading Info---------------------------------------------------------------
User selected phone SL65 using IMEI boot mode
Warning : Aborted by user.
--- Reading Info---------------------------------------------------------------

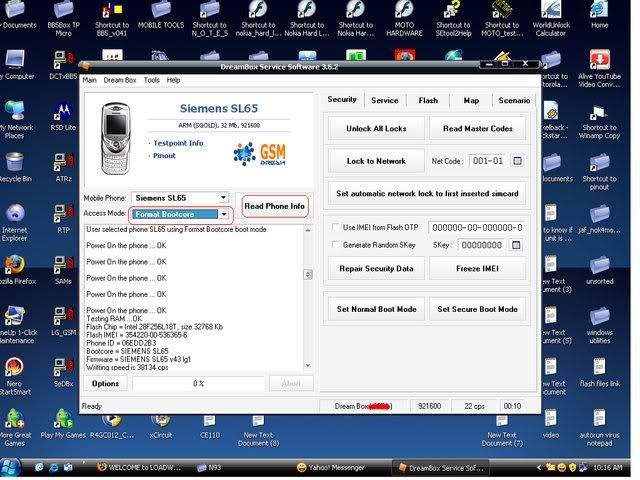

User selected phone SL65 using Format Bootcore boot mode
Power On the phone ... OK
Power On the phone ... OK
Power On the phone ... OK
Power On the phone ... OK
Power On the phone ... OK
Testing RAM ...OK
Flash Chip = Intel 28F256L18T, size 32768 Kb
Flash IMEI = 354220-00-536365-6
Phone ID = 06EDD2B3
Bootcore = SIEMENS SL65
Firmware = SIEMENS SL65 v43 lg1
Writting speed is 38134 cps
Phone IMEI = 354220-00-536365-6
SPLock CRC = OK
Phone Code = 2918 : FE
SIMCardID = 113107
Done.
--- Reading Security Info------------------------------------------------------
User selected phone SL65 using Format Bootcore boot mode
Power On the phone ... OK
IMEI = 354220-00-536365-6
Security Mode = Customer
Status [05] = OTP closed
Status [0A] = BootKEY misses in EEPROM
Status [0C] = Keys missing in BCORE (Clean BCORE)
Status [10] = Minimal access to BFC
Status [15] = Complete condition
Status [1A] = Block 76 is accessible
Status [1D] = Blocks 5121, 5122, 5123 are present
Hint : Set "Factory Mode" to read <Boot Key> and other extended info.
Error : Failed.
--- Setting Factory Mode-------------------------------------------------------
User selected phone SL65 using Format Bootcore boot mode
Power On the phone ... OK
Security Mode : Customer
Sending SKey (00000000) ... OK.
Waiting for "Factory Mode" ... FAILED.
Error : Unable to unlock FULL BFC protocol support.
Done.
--- Reading Info---------------------------------------------------------------
User selected phone SL65 using Format Bootcore boot mode
Power On the phone ... OK
Warning : Bootcore allows boot in normal mode or is erased.
Warning : Boot using Normal mode.
Power On the phone ... OK
Testing RAM ...OK
Flash Chip = Intel 28F256L18T, size 32768 Kb
Flash IMEI = 354220-00-536365-6
Phone ID = 06EDD2B3
Bootcore = < NOT SET > SL65
Firmware = SIEMENS SL65 v43 lg1
Warning : Firmware info different from Bootcore.!!!
Phone IMEI = 354220-00-536365-6
SPLock CRC = OK
Phone Code = 2918 : FE
SIMCardID = 113107
Done.
--- Reading Info---------------------------------------------------------------
User selected phone SL65 using Normal boot mode
Power On the phone ... OK
Testing RAM ...OK
Flash Chip = Intel 28F256L18T, size 32768 Kb
Flash IMEI = 354220-00-536365-6
Phone ID = 06EDD2B3
Bootcore = < NOT SET > SL65
Firmware = SIEMENS SL65 v43 lg1
Warning : Firmware info different from Bootcore.!!!
Phone IMEI = 354220-00-536365-6
SPLock CRC = OK
Phone Code = 2918 : FE
SIMCardID = 113107
Done.

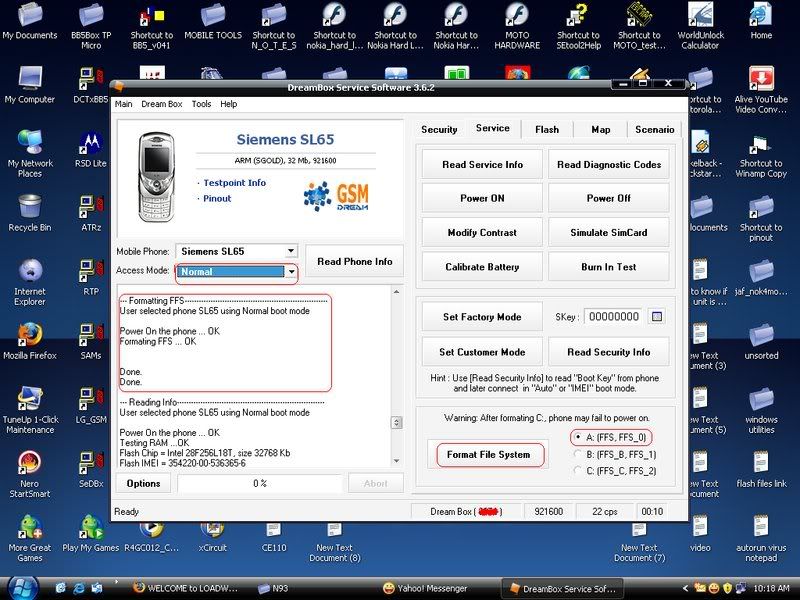

--- Formatting FFS-------------------------------------------------------------
User selected phone SL65 using Normal boot mode
Power On the phone ... OK
Formating FFS ... OK
Done.
Done.
--- Reading Info---------------------------------------------------------------
User selected phone SL65 using Normal boot mode
Power On the phone ... OK
Testing RAM ...OK
Flash Chip = Intel 28F256L18T, size 32768 Kb
Flash IMEI = 354220-00-536365-6
Phone ID = 06EDD2B3
Bootcore = < NOT SET > SL65
Firmware = SIEMENS SL65 v43 lg1
Warning : Firmware info different from Bootcore.!!!
Phone IMEI = 354220-00-536365-6
SPLock CRC = OK
Phone Code = 2918 : FE
SIMCardID = 113107
Done.

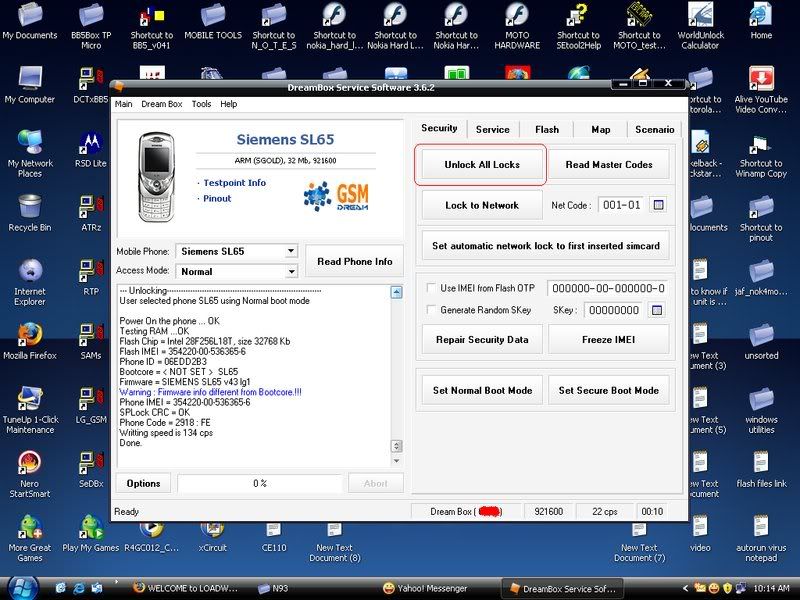

--- Unlocking------------------------------------------------------------------
User selected phone SL65 using Normal boot mode
Power On the phone ... OK
Testing RAM ...OK
Flash Chip = Intel 28F256L18T, size 32768 Kb
Flash IMEI = 354220-00-536365-6
Phone ID = 06EDD2B3
Bootcore = < NOT SET > SL65
Firmware = SIEMENS SL65 v43 lg1
Warning : Firmware info different from Bootcore.!!!
Phone IMEI = 354220-00-536365-6
SPLock CRC = OK
Phone Code = 2918 : FE
Writting speed is 134 cps
Done.
b.r.
