Topics - Prolevelz

Pages: 1 ... 12 13 [14] 15 16
196
Samsung Hardware-Repair Area / F.Y.I Sgh-C140 dont expose not much heat!
« on: November 09, 2007, 02:33:34 PM »

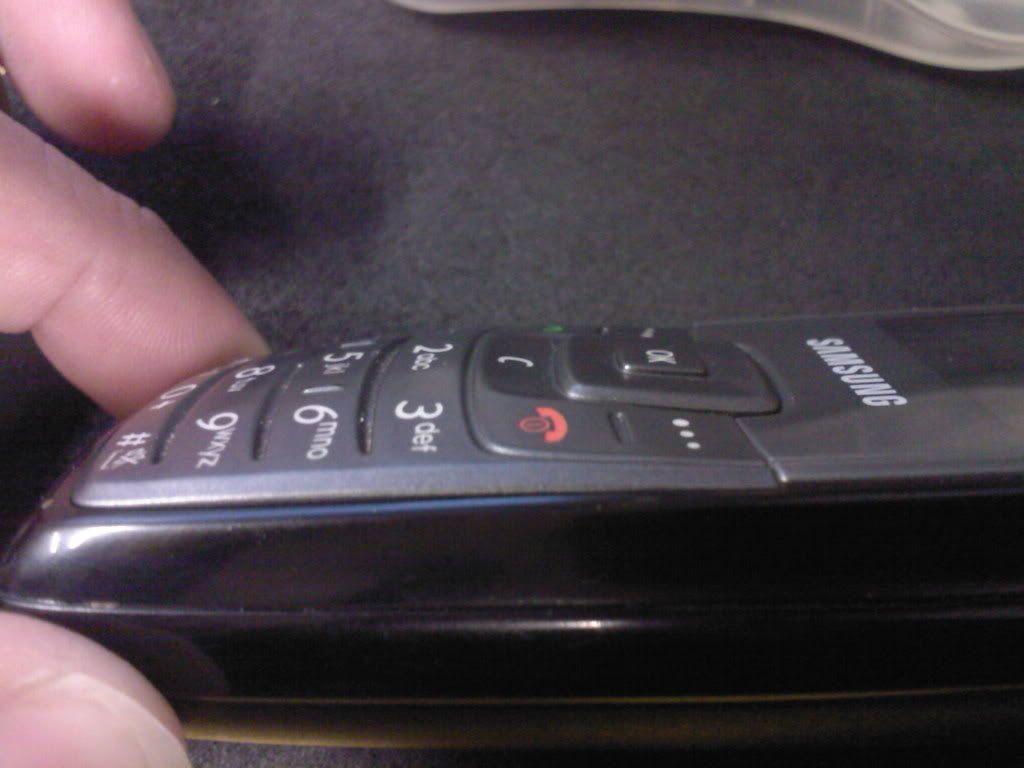

Even low heat but continuesly exposed to it!

the keypad easily expand! It will turn to be like this!

It was stock for 3days at the drawer even a aircondition room!
So.,,better watch out!

197
NSPRO / Sgh-E310 Hang-up (Solve by flashing)
« on: November 09, 2007, 11:56:15 AM »

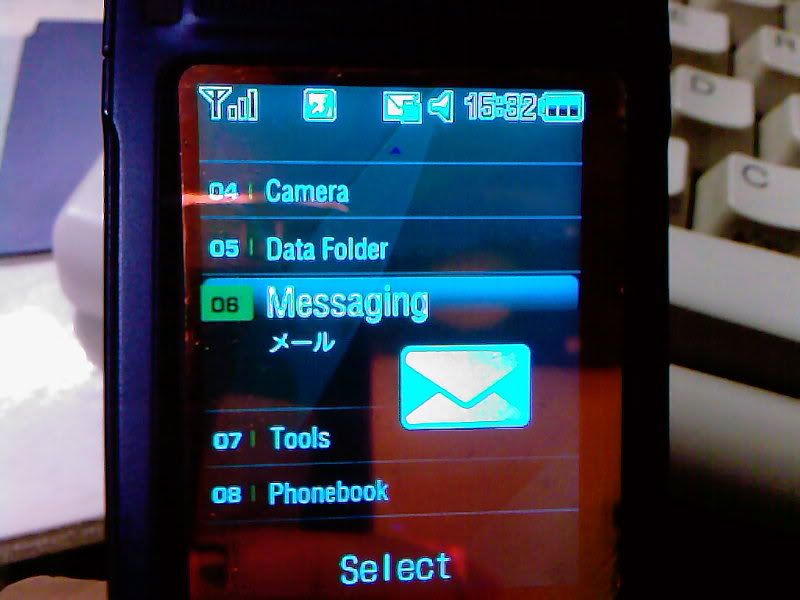

Sgh-E310 Hang up! when it power onn only SGH-E310 you can see!

I have disabled the side keys,varistor,mic! no luck!

so i have flashed it with full flash file! downloaded at support area of ns pro!

Then in flashing tick also the repair mode!


after flashing write imei! reveal the real imei at the back of the unit!
Then costum reset and E2p reset!

Done!

I can type now!Works well!

198
Special Thanks to vermsky!!!

Like what i idid at this link!
http://srimeenakshimobiles.com/forums/showthread.php?t=1240
This method is faster and is less complicated
  • Check Firmware version.
    • Unactivated phones
-Drag slider to the right to make an emergency call.
-Dial *3001#12345#* then press call
-Select Version

If firmware (this is not a typo) is 03.12 then firmware is either 1.0 or 1.01. You need to upgrade this to 1.02.

If you see 03.14 then you have 1.02 already, you are lucky
If you see 04.01 then you have 1.1.1. A little more patience is needed
  • Activated phones (locked and not jailbroken)
- Go to Settings -> About to check your baseband and firmware version.
  • What you need:
Software:
iTunes version 7.4.1.2 (I use this and never had problems) 7.5setup tested also
ibrickr versions 0.8 and 0.91 (You will know why later)
putty
SWUnlockiPhone-klip (This contains PACAY by brasuco for easy Activation and unlock.pxl)
baseband-flash + secpack (You will see secpack****.bin in the folder. Just rename it to secpack)
Installer-2.63.pxl (sometimes browsing applications in ibrickr times out so I used this instead)
Google for all of these. I do not take credit for these apps. They are not mine but they can easily be found all over the internet.

Hardware:
iPhone dock connect to PC via USB
WIFI needed for v1.1.1 only
and iPhone of course
  • Downgrading firmware
Turn off the iphone, open itunes and device manager (make sure this is on top). Collapse the USB Controllers part so you can see clearly the driver installed.

[FONT="][/FONT]


Dock your iphone. Once you see the gray apple, hold the power and home keys until the screen shuts off. Release the power button after 1 second but keep holding the home button until you see Apple’s DFU driver installed or at least windows says installing new driver.

Go to iTunes and you will see that the phone was detected in recovery mode. Hold the shift key then click restore and select the file I highlighted and wait for the restore to finish.



Once it’s done itunes will show you an error but it’s ok. You should either see the regular activate screen or the yellow connect to itunes triangle. If you see the USB cable with iTunes logo, try it again. If you get the yellow triangle, open ibrickr v 0.91 and click begin downgrade to 1.02 then select the middle option and you’re phone should boot back on the activate screen.
  • Jailbreaking (I have always used v 0.8 for this method)
Click on free my iphone then once ibrickr is ready, turn off your phone. Take it out of the dock, place it back while holding the home key, let go once you see the yellow triangle again. Just wait for ibrick to finish. Close ibrickr and open it again once you see the activate screen.

Now click on applications and follow the instructions there. You should see this screen when it’s done.




Click on Install from PXL file and install unlock.pxl (and Installer-2.63.pxl if you started with v 1.1.1)

With ibrickr still open, run (CLICK HERE) activate.bat found in the PACAY folder and wait for it to finish then restart your phone. Go to settings-> general-> Auto Lock and set it to never.



Go back to ibrickr’s main screen and click on Files. You will see an iphone on the right side of the screen with directories. Go to usr->bin and upload these files (extracted from baseband-flash):




Note: Once baseband flash is extracted you will secpack41103.bin (not sure of the filename anymore) just rename this to secpack.

Connect to Wifi then run Installer. Install these in the specific order:
Community sources
BSD subsystem
Open SSH

Once it’s all done go back to settings -> WIFI. Tap the blue arrow beside your connection to check your IP.

Open putty and plug in the IP address in the box.




A terminal will now open. Username is root and password is dottie.
Now type each command line and press enter… and yes it is case sensitive so make sure to follow the capitalizations. My comments will start with ***

cd /usr/bin
chmod +x bbupdater
chmod +x ieraser
launchctl remove com.apple.CommCenter
bbupdater –v *** checking baseband is 4.01
ieraser *** this will erase the baseband
bbuppdater –e *.eep –f *.fls
bbupdater –v *** Checking if baseband is downgraded to 3.14
launchctl load /System/Library/LaunchDaemons/com.apple.CommCenter.plist
exit

  • Run Unlock found on your main screen and wait for it to finish. Once it’s done, just insert a non ATT/Cingular SIM and make a test call. Check youtube connection as well.

199
NSPRO / The Easy way to Unlock SGH-J600
« on: November 08, 2007, 11:42:25 AM »

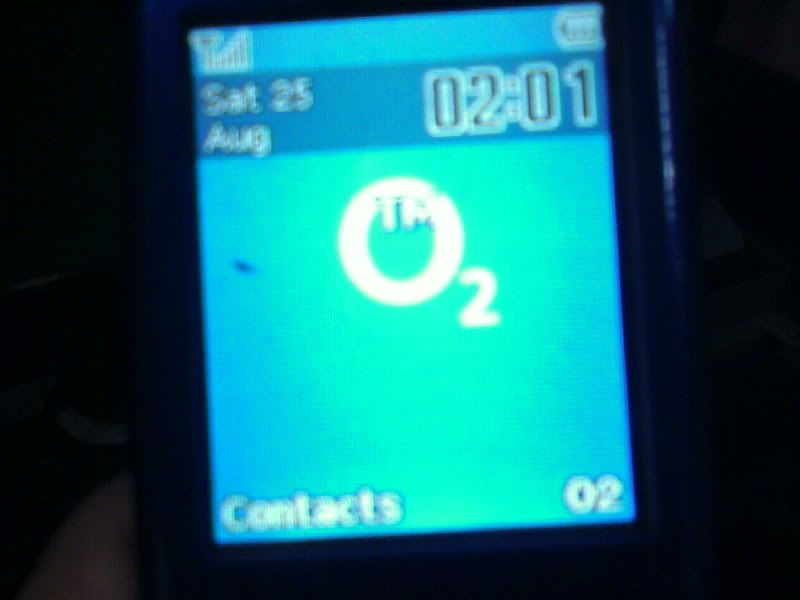

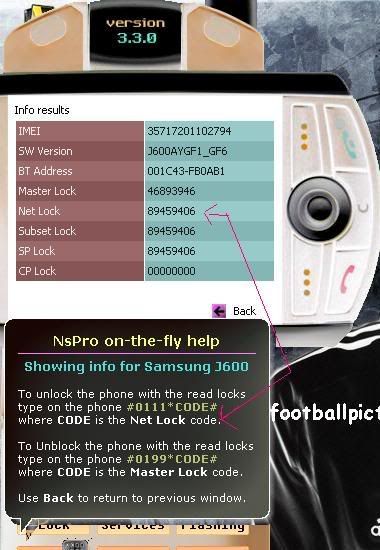

SGH-J600 O2
just tick GET Info!

Then Follow the Fly-Help option! Until you see the personalized Cancelled! then the Phone will Reboots.Then,DOne!
Simply like that!


200
Various Mobile / iPhone v1.1.1 Insert Correct sim!!! (Recovered)
« on: November 08, 2007, 07:46:19 AM »
Insert Correct sim with any many other sim.Including AT&T...But now,it's ok


Sorry i got no details cause it's very complicated step by step... Lucky enough I have made it!
If you are not capable enough to understand tricky instructions...Well Then, dont be eager to do it!

SO..,, This is the iPhone

the version is 1.1.1 (3A109a)
and the imei begins with Zero ex. 00499901------
Modem Firmware is 04.01.13_G


So I downgraded it to v1.0.2 then unlock
Download all of this!

Itunes 7.5setup  http://www.sendspace.com/file/gcwpx0
Downgrade baseband  http://www.sendspace.com/file/s305ds
iPhone,1.0.2_1C28_ Restore http://www.sendspace.com/file/8mf0mt

Just Dl All
I cannot upload the step by step cause lots of image to upload .,! compose of 32 images with instructions.
forgive me! but i can guide you if ever you face the same problem as i have for the best that i can!Just ym me! As long as i got nothin doin anythin!

201
P2k Series / Rsdlite 3.9.1 new Released!!!
« on: November 05, 2007, 02:50:03 PM »
Tested working v3.9.1¬ infected by virus.



After you install this it cannot be detected as virus...hehehehehe!

202
Rocker box by Legija / V980 Unlocked Via Skip TP!!!
« on: November 05, 2007, 10:51:01 AM »

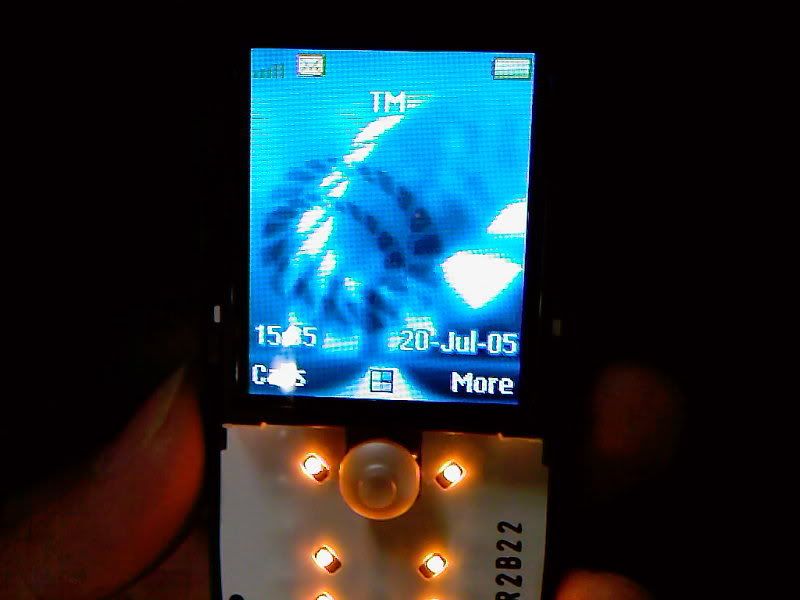

Boot Loader
0.6.3.1
SW Version:
R26_U_83.38.38.04.01P

Used Version 2.12
THEN SELECT
V980 (R26_U_xx_3x_xx)

then Tick Directly Unlock!!!
Then Follow Steps!!!follow steps!!!
The UBL will upgrade its Boot loader version!!!
CONTINUE just follow steps until you will see UNLOCK skip tp Sequence OK


As you notice the Boot Loader was changed!
it automatically upgrades the bootloader on unlocking process!



UNLOCKED DONE!!!

Sorry!No logs at all! Cause you will just direct tick Unlocked then simply follow steps!!!

203
Rocker box by Legija / V3 8.26 Unlocked Done!
« on: November 03, 2007, 02:49:14 PM »

Step 1
Enter Blank and follow steps!
until it is S-Blank mode OK!

Step 2
Tick Unlock (just only 1sec)

Step 3
Tick Leave Blank and Follow Steps Until it says Recovered to Blank Mode OK!



204
Samsung Programs & Flashers / SGH-C417 Cingular UNLOCKED!!!
« on: November 03, 2007, 11:54:26 AM »
I got no cable with my NS.
So I got this codes!

This code is very common and very usefull!hehehehe.


First with different carrier SIM in phone at WRONG CARD screen ENTER on the keypad
*2767*3855# (wait 10-15 seconds) phone will reboot(restart)
When phone completes reboot ENTER
*7465625*638*00000000*00000000#
NEXT ENTER
#7465625*638*00000000#
AND THEN *#7465625# to check the locks....all locks are inactive...these are all the locks...
network lock - inactive
subset lock - inactive
sp lock - inactive
cp lock - inactive
sim lock - inactive
activa lock - inactive
phone lock - inactive
auto network - inactive
auto subset lock - inactive
auto sp lock - inactive
auto cp lock - inactive
auto sim lock - inactive


just follow this code till you see the Networked Personalized and Network Deactivated!!!


205
Sony Ericson Software / F500 Blinking! Repaired!
« on: November 03, 2007, 10:43:10 AM »

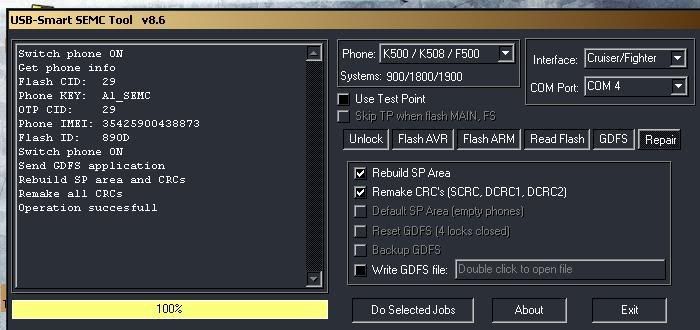

Go to the Repair Area
tick Rebuild SP Data
tick Remake CRC's!
Done!


I have dismantled the unit
Because when i insert cable,it cannot be detected!
So i have repaired it through resoldering charging pins!!!

206
Rocker box by Legija / L6 Bootloader Only when Inserts Battery! (Repair)
« on: November 02, 2007, 03:28:23 PM »
this is the problem!
when it inserts batt! only bootloader!
just tick link!
http://pixpipeline.com/d/d846f97cdf9b.jpg


Done Repairing,just tick link!
http://pixpipeline.com/d/84345e8fe42d.jpg






sorry mostly of imagehosting was under construction!

Just follow the attachment!

Step 1:
Select desired Model And bootloader sw version!
then tick Enter Blank!
follow steps of the attachment 1
and attachment 2 is Finished in Enter Blank!

Step 2:
Tick Repair!
follow the steps of attachment 3 until it is ok in repairing!

Step 3:
Tick Leave Blank!
follow the steps of attachment 4 until it is ok-see attachment 5

Done!


for Reference!!!

207
Samsung Hardware-Repair Area / Flex! A common Problem of no Display
« on: October 31, 2007, 02:10:55 PM »
Sgh-D840
problem:No Dispaly
Repair done: Replace directly flex!


No display!


Replacing!


Done!

208
Alcatel & TCL Old Models / Free Soft Unlocked E205x
« on: October 31, 2007, 08:55:52 AM »


Using Com port cable!
*Just tick FREE BULGARIAN MEDICS IN LIBYA
*Connect cable to the powered off phone
*Wait for the codes will appear!
*Insert non-accepted sim then enter what is asked (NCK)
*Done!

209
NSPRO / 706sc dl 2.30 2007.02 unlocked!
« on: October 30, 2007, 12:20:14 PM »

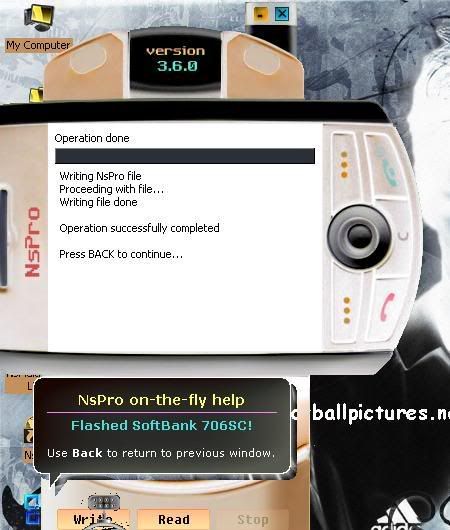

Flash it via Patch file!
*Select flashing
*Tick Ns Pro file!
*Load patch unlock file!
*then write!
Wait for minutes! (3mins)


Then:

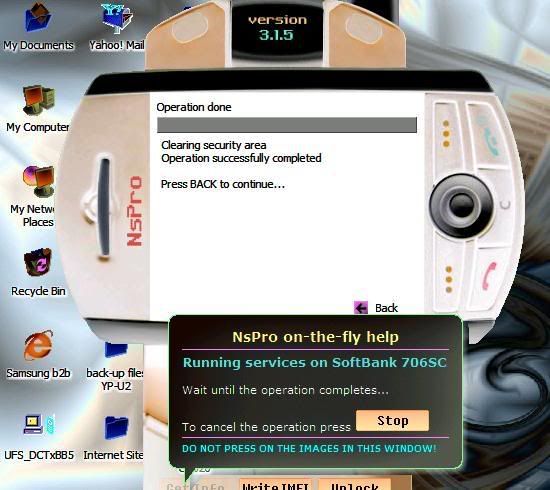

Use Ns pro version-3.1.5
*Select services
*Tick Start to clear it all!
*done! UNLOCKED!




I dont know why is the new  version disabled the option of services!
so all you have to is uninstall and install the lower version tested by me V3.1.5

Note: Do not use Zxxxx Cable anymore!
Services is another way of unlocking in sc type!
Always press 9+power when ask!

210
Sony Ericson Software / 4locks Z520 Recovered by WotanClient
« on: October 29, 2007, 11:26:25 AM »
Special THANKS to GSMtimes!!!



then tick unlock/Repair at se tool!




sorry no image!
at this time!
